big_al wrote:

type21f wrote:Cheers!

[url=http://s45.photobucket.com/user/ALANSCOTTGRAHAM/media/imagejpg1_zpsbd8183d7.jpg.html] [/url

This is what I have graham

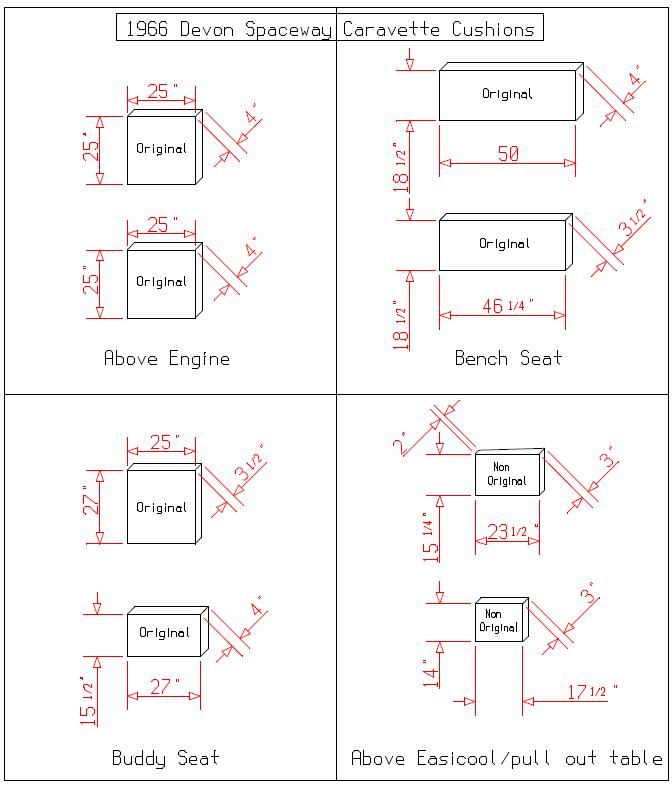

LOL - Big Al goes for the SSVC technical drawing prize 2015 Looks like I'm in with a chance now
Brian

Ah but he has replied and provided information...so he gets a prize!
Did you not qualify for your excellent drying rack drawing ....???
I am sure you did...(after resubmitting to correct the obvious school boy error?)
Sounds a bit like pot calling the kettle black!
Take no notice of him Al he is like me...old and grumpy...!!!

Hope thats better

Do not take it to heart but perhaps you could answer...

Is this "1st angle projection" or "3rd Angle Projection"?

Awnly jaw king

big_al wrote:

Hope thats better

Could you do it in metric ?

Is the cusion above the Easycool a standard thing,as all the pics I have show it a standard piece ???

I'm about to order a set of cusions so would like to get it right!!!!

D.S wrote:Is the cusion above the Easycool a standard thing,as all the pics I have show it a standard piece ???

I'm about to order a set of cusions so would like to get it right!!!!

I'm not sure... those two cushions have non original covers so I can't tell without stripping them to look at foam
Also not sure if taper is just wear. i think i have two for when you pull the table above the easicool out

type21f wrote:Do not take it to heart but perhaps you could answer...

Is this "1st angle projection" or "3rd Angle Projection"?

Awnly jaw king

maddison wrote:

big_al wrote:
Hope thats better

Could you do it in metric ?

Multiply by 25.4

D.S wrote:Is the cusion above the Easycool a standard thing,as all the pics I have show it a standard piece ???

I'm about to order a set of cusions so would like to get it right!!!!

The original was fixed to the sliding seat and covered in vinyl, usually grey but I have seen a couple of red ones.

Al has definitely won the TD trophy for best drawing. Imperial dimensions are totally in keeping with split Devon interiors - metric is for nuts (and bolts)

Aren't we good nerds...minds full of the most useless information (to the usual humane being) .....LOL

I always say "I know an awfull lot.......................... about very little"

Nice one big_al bus looks very much better than when it was for sale...good work..

G

type21f wrote:Do not take it to heart but perhaps you could answer...

Is this "1st angle projection" or "3rd Angle Projection"?

Awnly jaw king

Technically it's cavalier oblique...



Your jibe relates to projected orthographic views...

PMSL...
Just to explain
That is Seabass = Peebles (= L'Aine = The eldest son = #1 son) explaining to type21f - Catherine + type21f (aka the Old Man) that his joke is not funny...

He always refers to my jokes as Dad's jokes are awful..

write him out of the will…see who's jokes are the funniest

....good idea...
Trouble the youngest one Le Cadet = Nexus 7 is better at taking the P. Seabass is mellowing..Too much Land Rover

So the WT sizes I have are

Buddy Base 25 x 27
Buddy Back 15.5 x 27
Rear over engine 25 x 25 x 2off
Bench 50 x 18.5
Bench 46.25 x 19
Easicool 19.5 x 14
Pull out 23.5 x 15.25

I have the following size cushions

big_al wrote:
Hope thats better

It sure is...
The question is will my 10 cushions work in a WT...

8 off 62.23cm x 48.26cm x 10cm or 24.5" x 19" x 4" Large
2 off 33.02cm x 48.26cm x 10cm or 13" x 19" x 4" Small
