Devon Whale Pump Service Kit

Devon Whale Pump Service Kit

by Rippers » Tue Jul 07, 2015 10:09 am

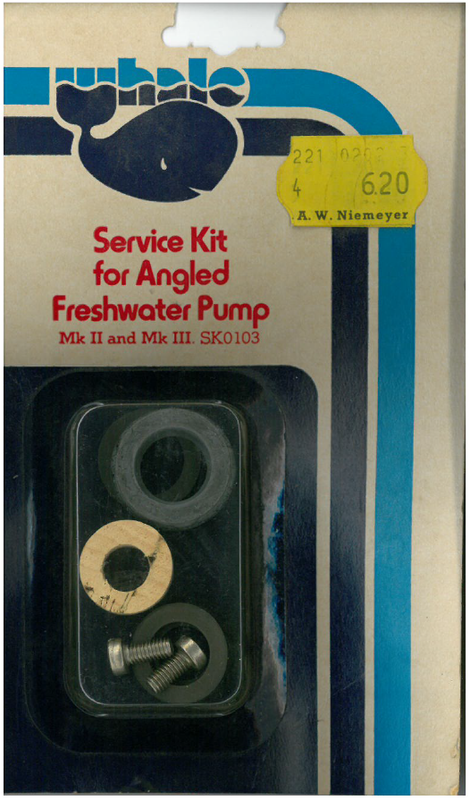

Following from the other thread Look what I managed to source!


Rippers
SSVC Member
Posts: 1085
Joined: Thu Jul 21, 2011 4:36 pm

Re: Devon Whale Pump Service Kit

by vwdave » Tue Jul 07, 2015 10:33 am
Nice one, can you get more?

Thanks

Jim
vwdave
SSVC Member
Posts: 487
Joined: Mon Sep 02, 2013 10:53 am

Re: Devon Whale Pump Service Kit

by Rippers » Tue Jul 07, 2015 10:52 am
I got it from Germany for a couple of quid, it was the only one. I'll deffo pick up more in the future If i find them and help you guys out.
Rippers
SSVC Member
Posts: 1085
Joined: Thu Jul 21, 2011 4:36 pm

Re: Devon Whale Pump Service Kit

by vwdave » Tue Jul 07, 2015 11:15 am
Thanks for that. Put me down for one.

Cheers.

Jim
vwdave
SSVC Member
Posts: 487
Joined: Mon Sep 02, 2013 10:53 am

Re: Devon Whale Pump Service Kit

by Rippers » Tue Jul 07, 2015 11:30 am
Now I have a part number for the service kit I have email Whale in Ireland to see if they can help us as a Club
Rippers
SSVC Member
Posts: 1085
Joined: Thu Jul 21, 2011 4:36 pm

Re: Devon Whale Pump Service Kit

by vwdave » Tue Jul 07, 2015 11:32 am
Thanks, really appreciate it.
vwdave
SSVC Member
Posts: 487
Joined: Mon Sep 02, 2013 10:53 am

Re: Devon Whale Pump Service Kit

by Rippers » Tue Jul 07, 2015 11:33 am

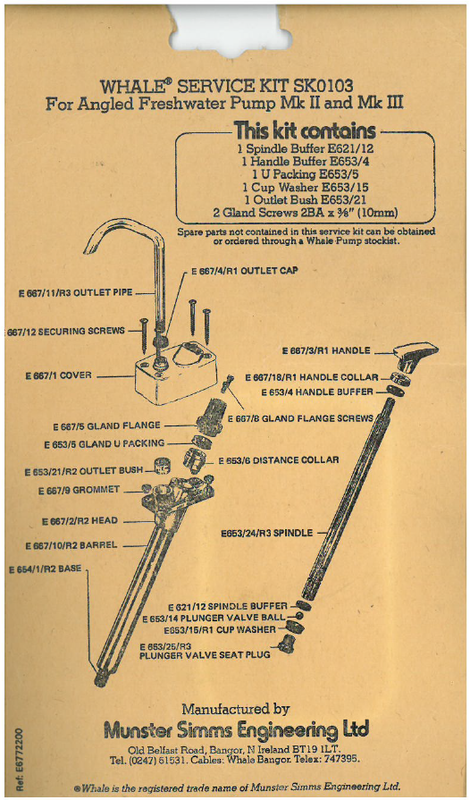

Looking at the back of that Service kit.. don't you love how back in the day everything was serviceable and you could order every single part. These days everything is a sealed unit and if it stops working you throw it away!
Rippers
SSVC Member
Posts: 1085
Joined: Thu Jul 21, 2011 4:36 pm

Re: Devon Whale Pump Service Kit

by type21f » Tue Jul 07, 2015 11:42 am
I ordered two from a UK supplier..

http://www.bradtech.ltd.uk/products/Ser ... ml#SID=146

Service kit with complete set of washers for Whale Low Profile Vertical Pump Mk 1 and Mk2.
Kit include:
E653-04 Handle Buffer
E653-05 U Gland Packing
E653-15 Cup Washer
E700-07 O ring
E704-10 Base Valve - only used on Mk2 Low Profile Vertical Galley Freshwater Pump and Gusher Galley Mk2 and 3..
Click here for the service kit for the Whale "V" pump Mk5 and 6.

The handle buffer, gland packing and cup washer should also fit:
Whale Angled Freshwater Pump Mk3 and Mk4
Whale V pump Mk4
The V pump Mk 5 uses the same cup washer and buffer washer
They have arrived while I was away on the European Tour...
I have not even opened the enveloppe yet!
I will check what I have and then post pictures...link and prices..
If they are the correct item..
I got the link from a post from Rippers..
But the kits seems to have some of the parts in the list above..
It is working out what is actually missing and if it needed.
Yet to see what I got!

I will try to do a blow by blow strip and photo session..
type21f
SSVC Member
Posts: 7468
Joined: Tue May 29, 2007 12:55 pm

Re: Devon Whale Pump Service Kit

by Rippers » Mon Jul 13, 2015 10:06 am
That would be great Graham.

I have sourced another NOS kit, plus a guy from(or associated with) Whale got back to me and is sending me samples to test. Hopefully between us we will get all these pumps working again!
Rippers
SSVC Member
Posts: 1085
Joined: Thu Jul 21, 2011 4:36 pm

Re: Devon Whale Pump Service Kit

by type21f » Mon Jul 13, 2015 11:03 am
I will identify the components supplied with the later kits and seek guidance on dims for the missing bits!
Just need some time to sit down and fiddle..
LOL
