1964 Slammed/Narrowed Swedish Panel Resto

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by vanmanjimmer » Sun Mar 29, 2015 9:19 pm
Evening guys, thought I better pop in for a weekend update.

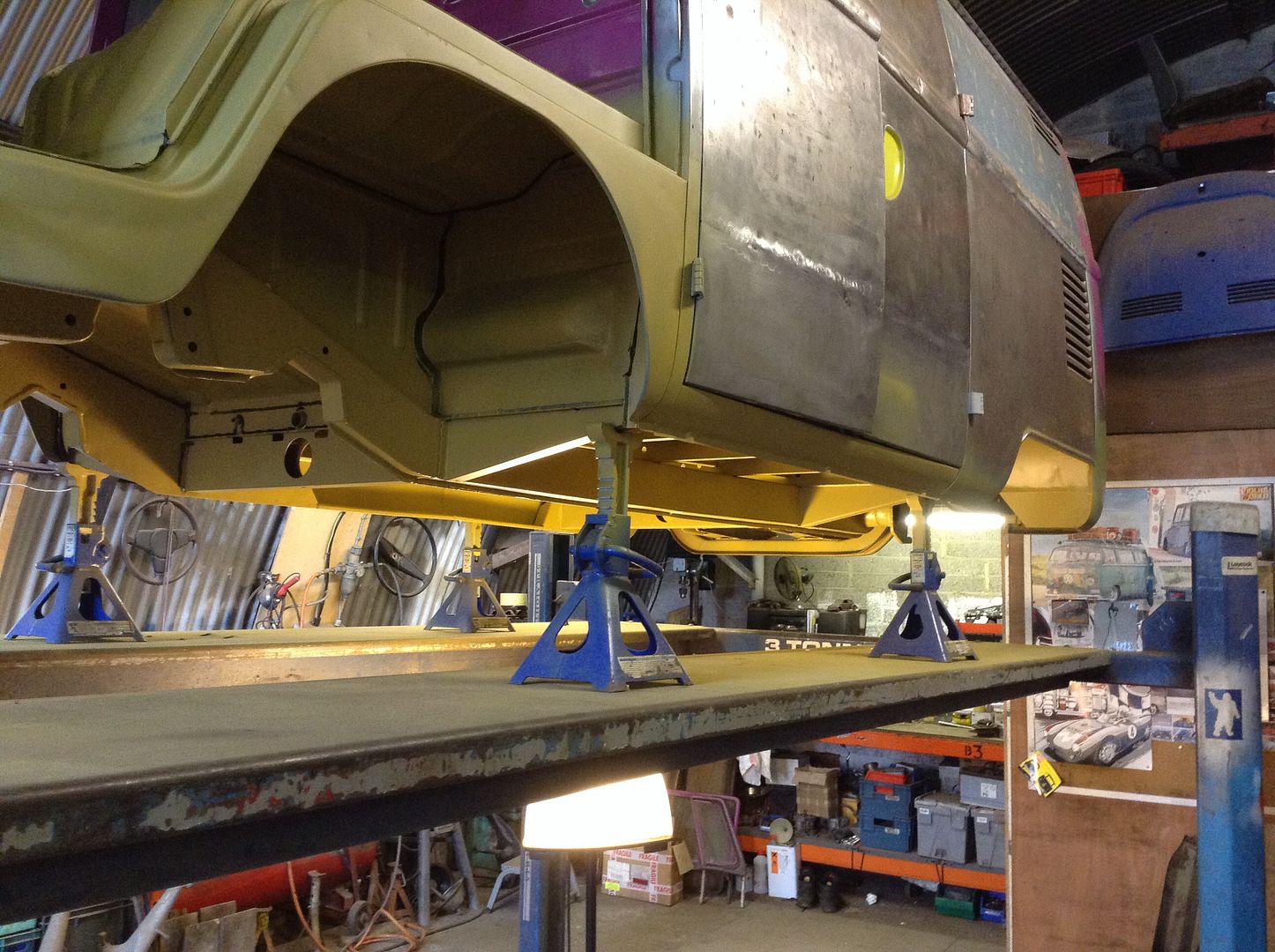

Saturday I stripped the front axle out and started to prep the underside for primer. And also cleaned up some untidy areas.

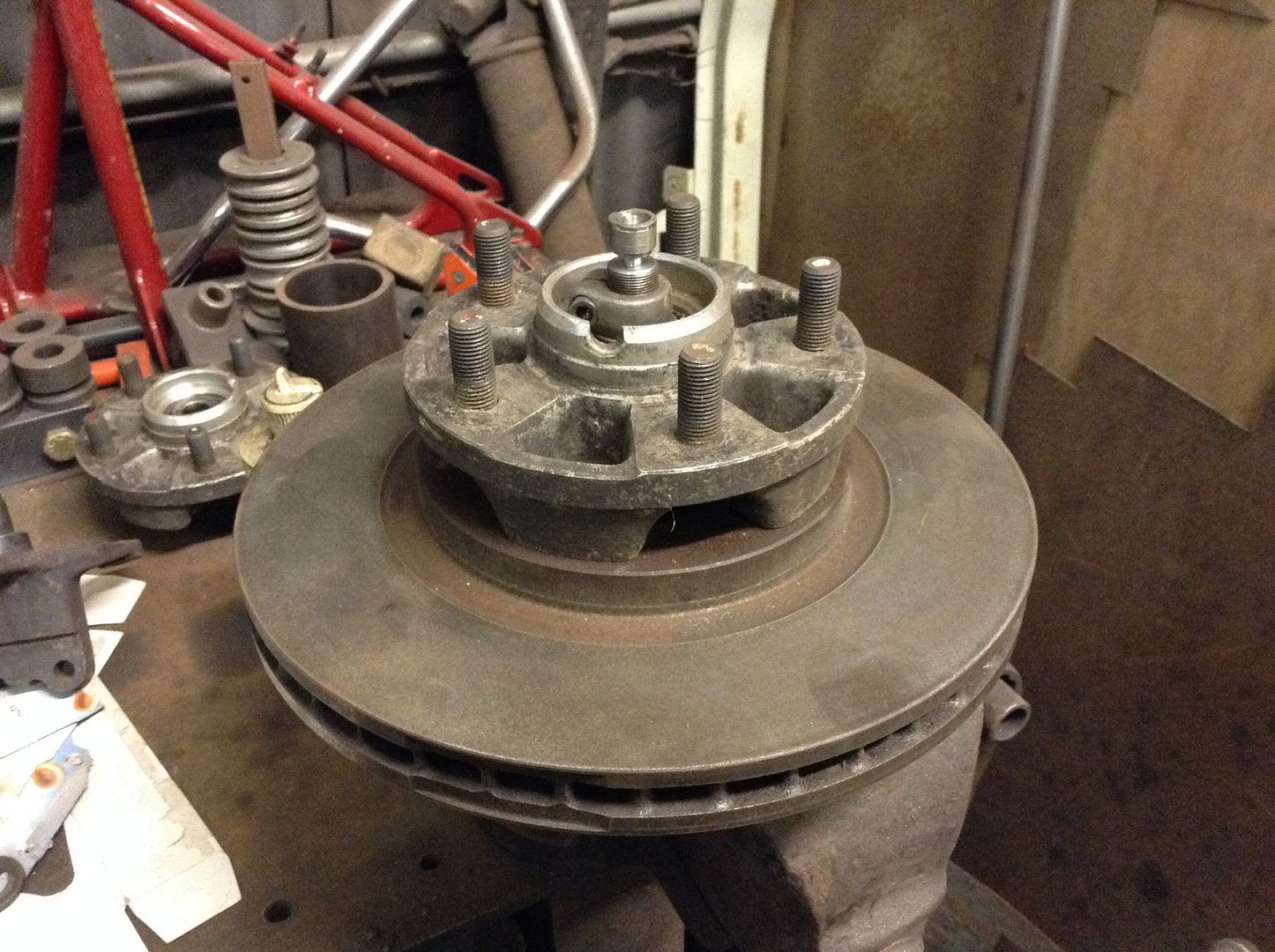

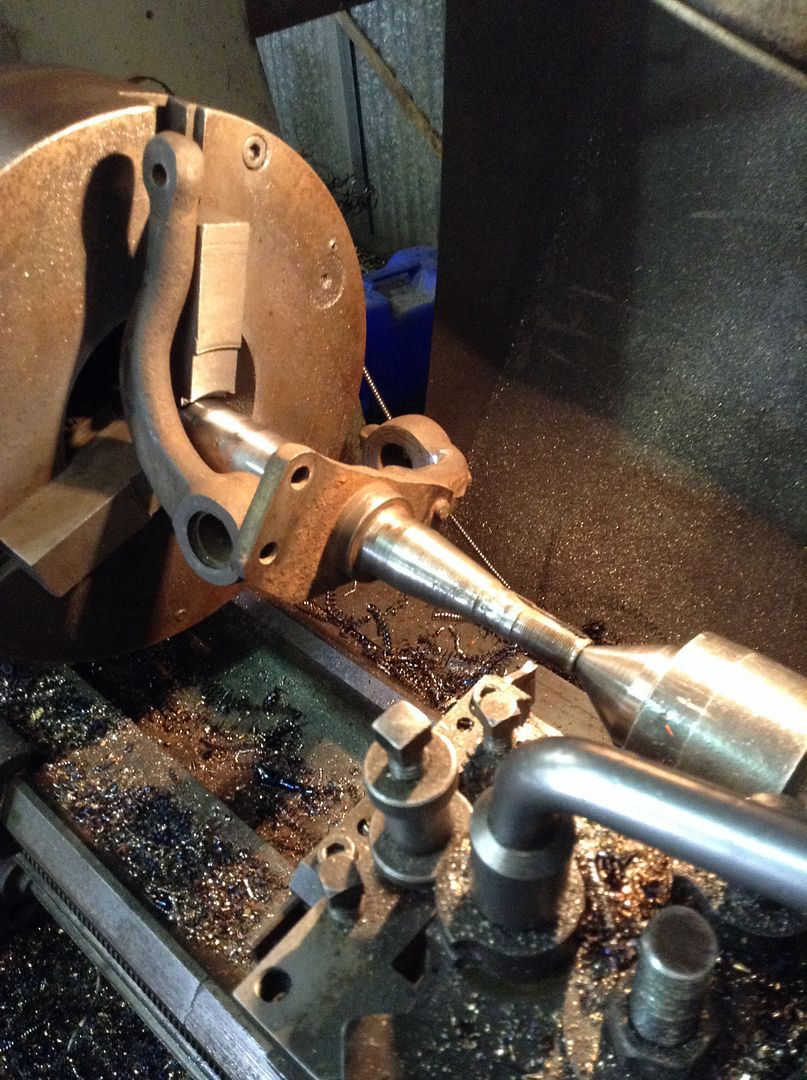

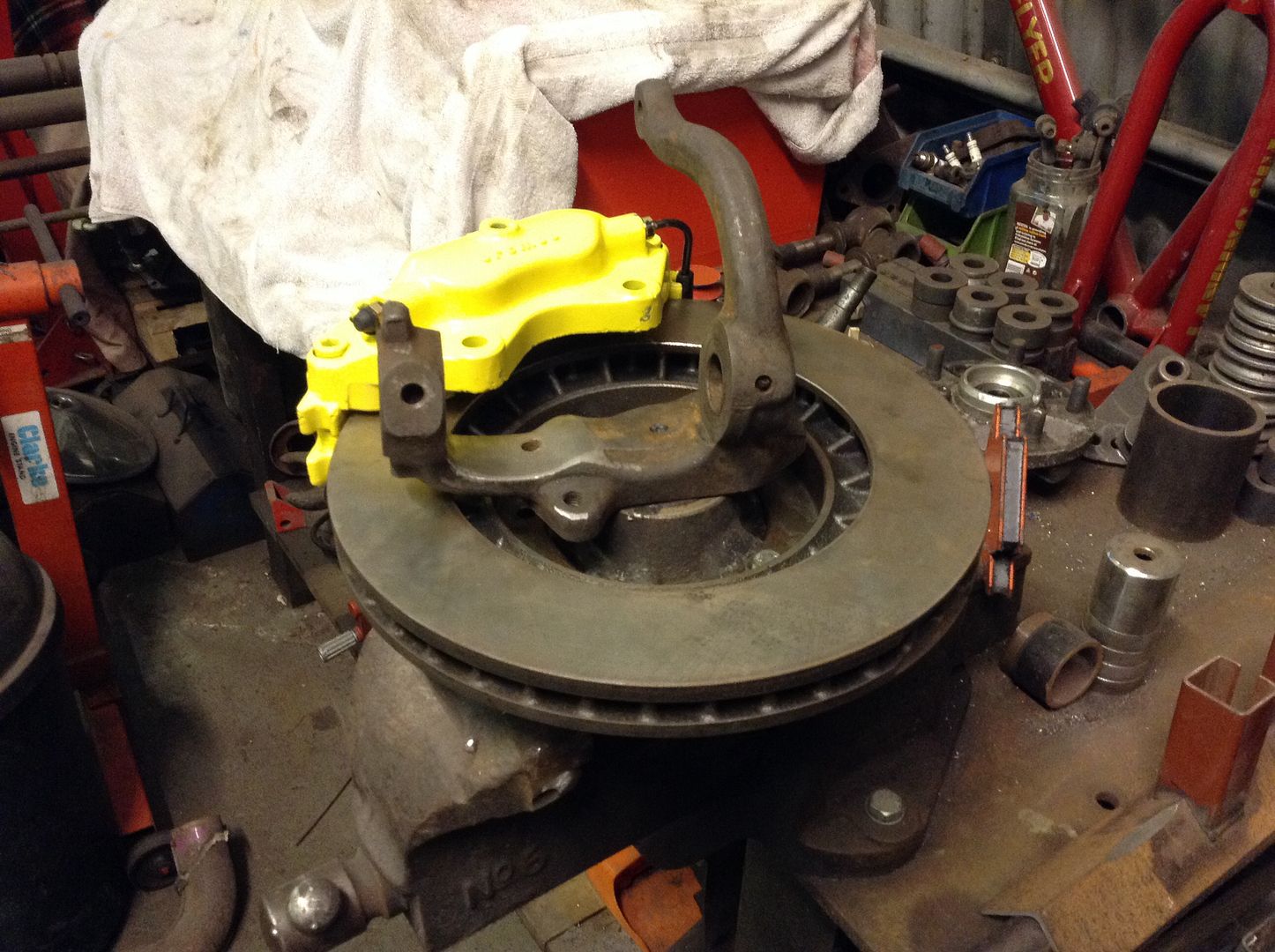

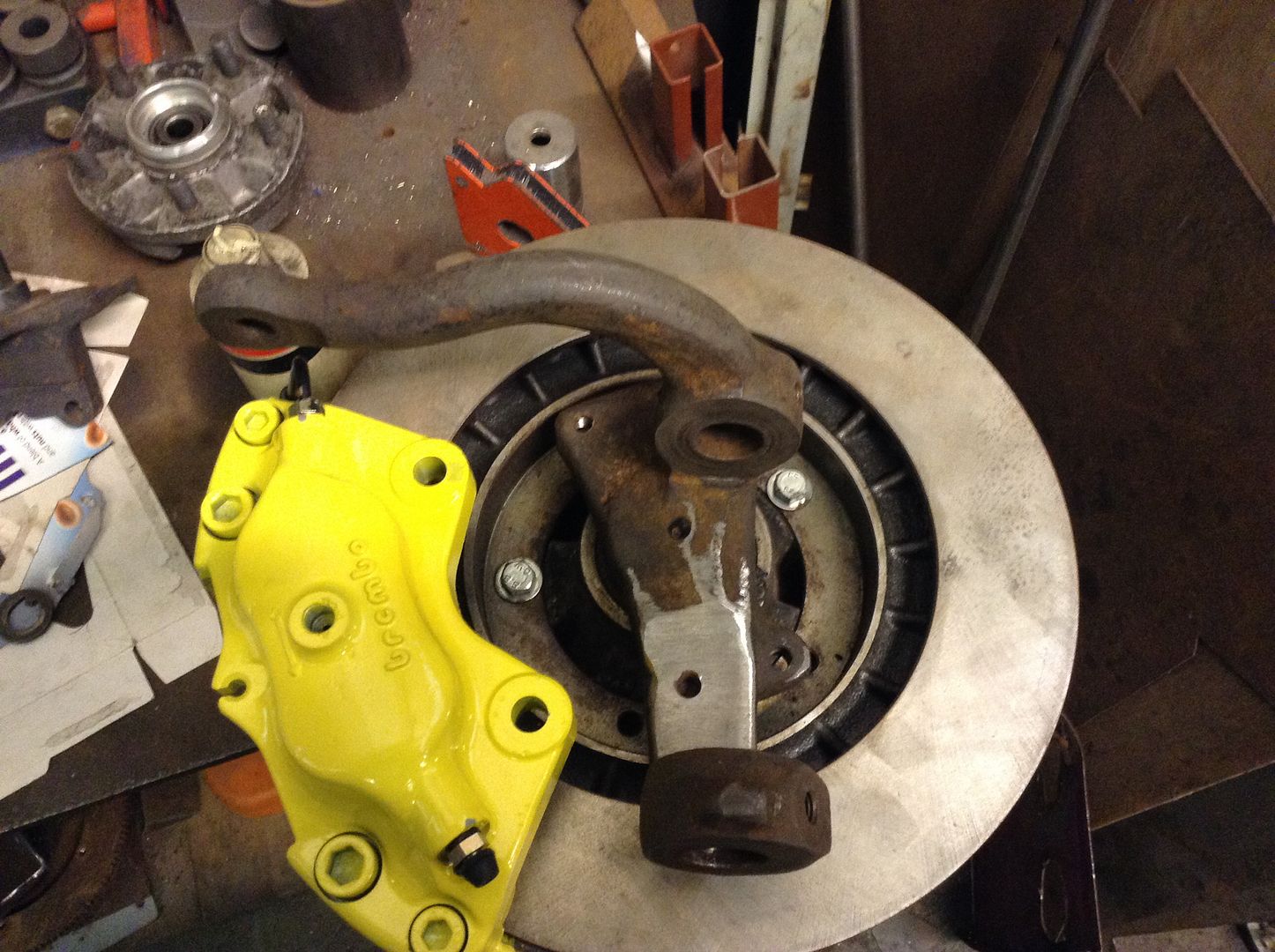

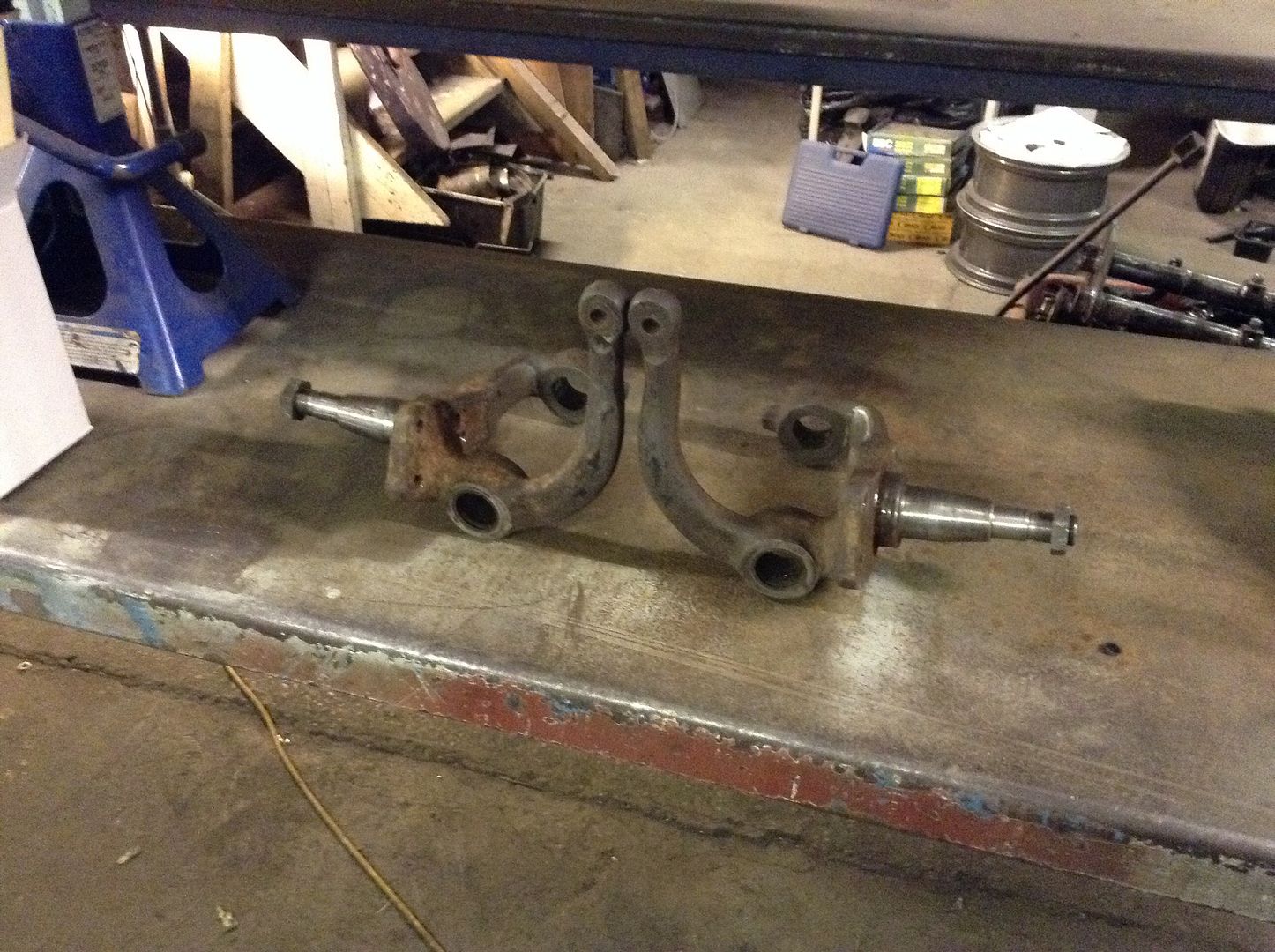

After a week of badgering my spindles are now getting somewhere, the basic idea is that I want to run porsche brakes however I don't want the track increase that you get with adaptor kits so the spindles are being re-machined.
I will then custom make caliper brackets to suit.



Nearly there time for a mockup before final finishing.





Very pleased so far.

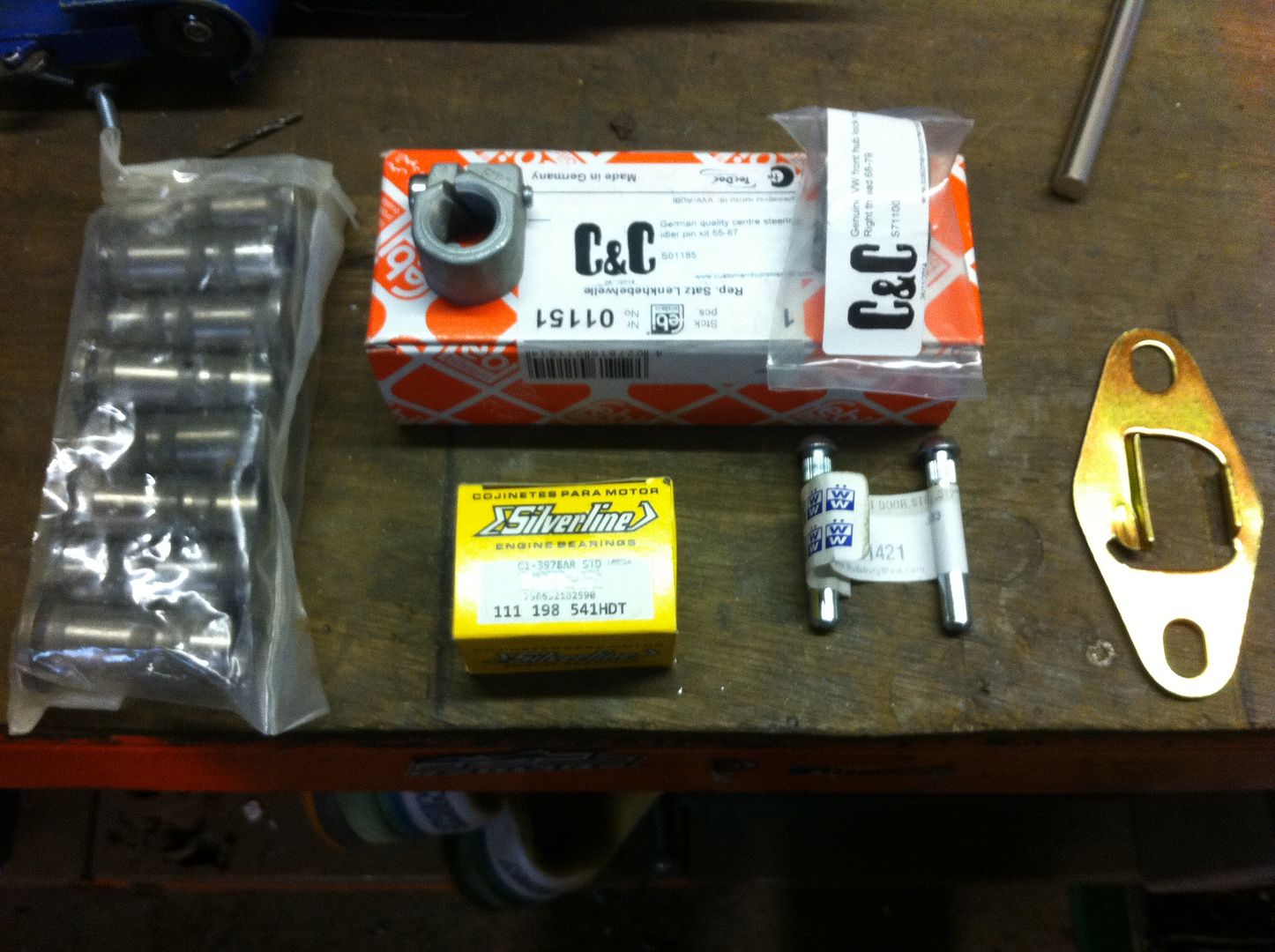

Volksworld show today. Good day out lots of shiny bus's to look at! Picked up some vitals cam followers and bareings from Stateside, steering idler and hub nuts from C&C, new service manual, spring plates and shock mounts from Creative. This lot should keep me busy for the foreseeable as I can now build the motor.



:cheers:
vanmanjimmer
Registered user
Posts: 347
Joined: Wed May 27, 2009 8:20 am

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by vanmanjimmer » Mon Mar 30, 2015 9:33 pm
Evening guys, got some bus time in tonight after work.

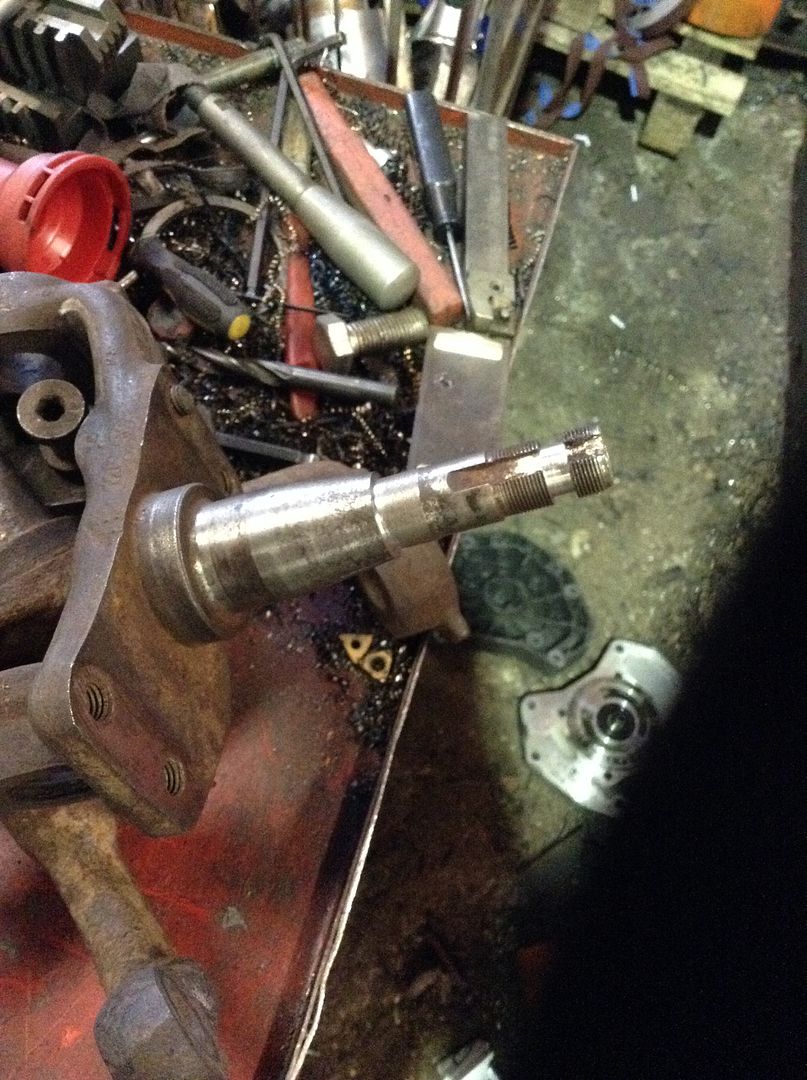

I have both spindles back from machining now, they still need th slot for the washer machining however I need to get measured for the caliper brackets so got them back for a week or so.

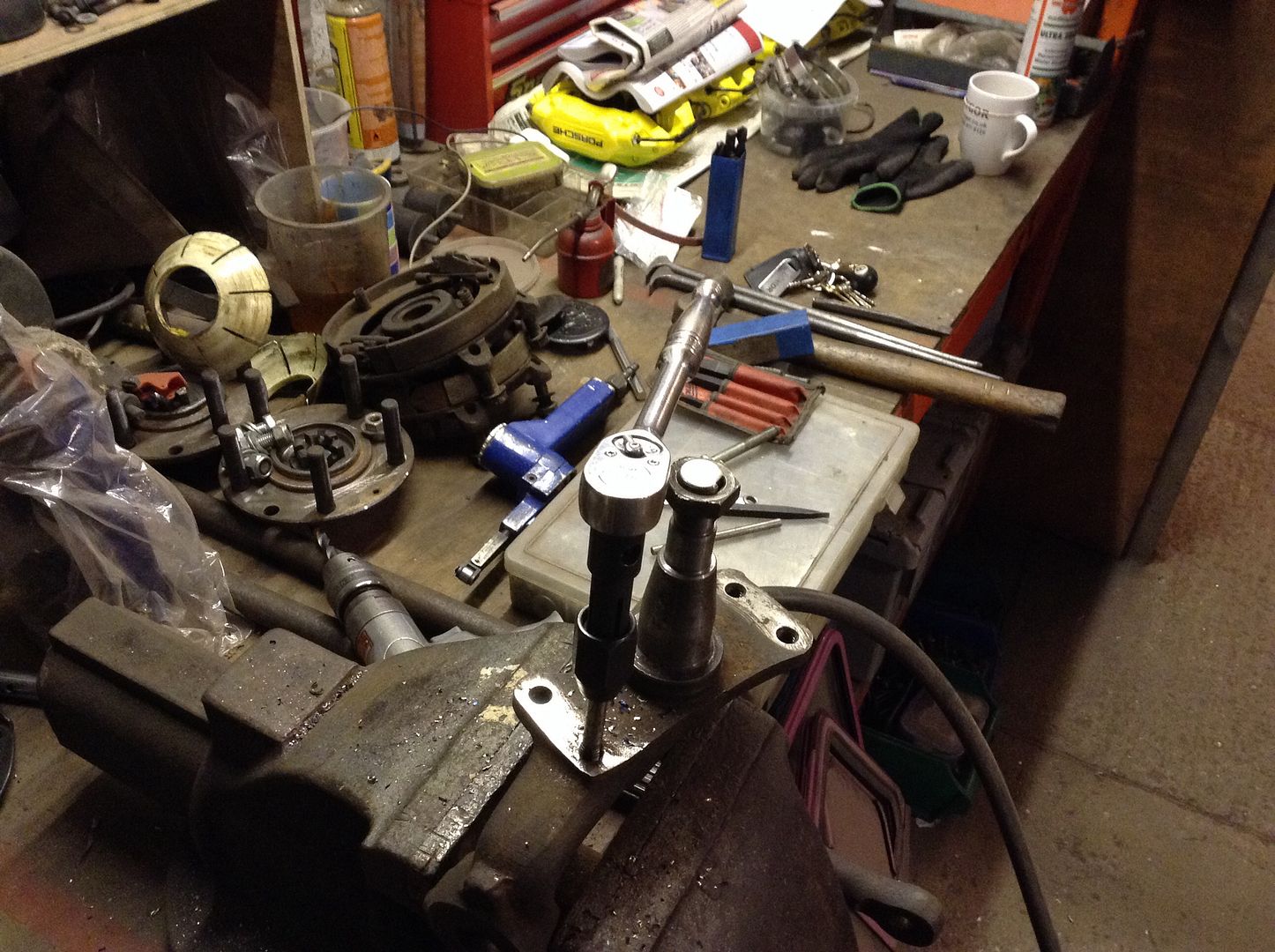

Had a stud to drill out and some dressing to do, also knocked the bushes out.

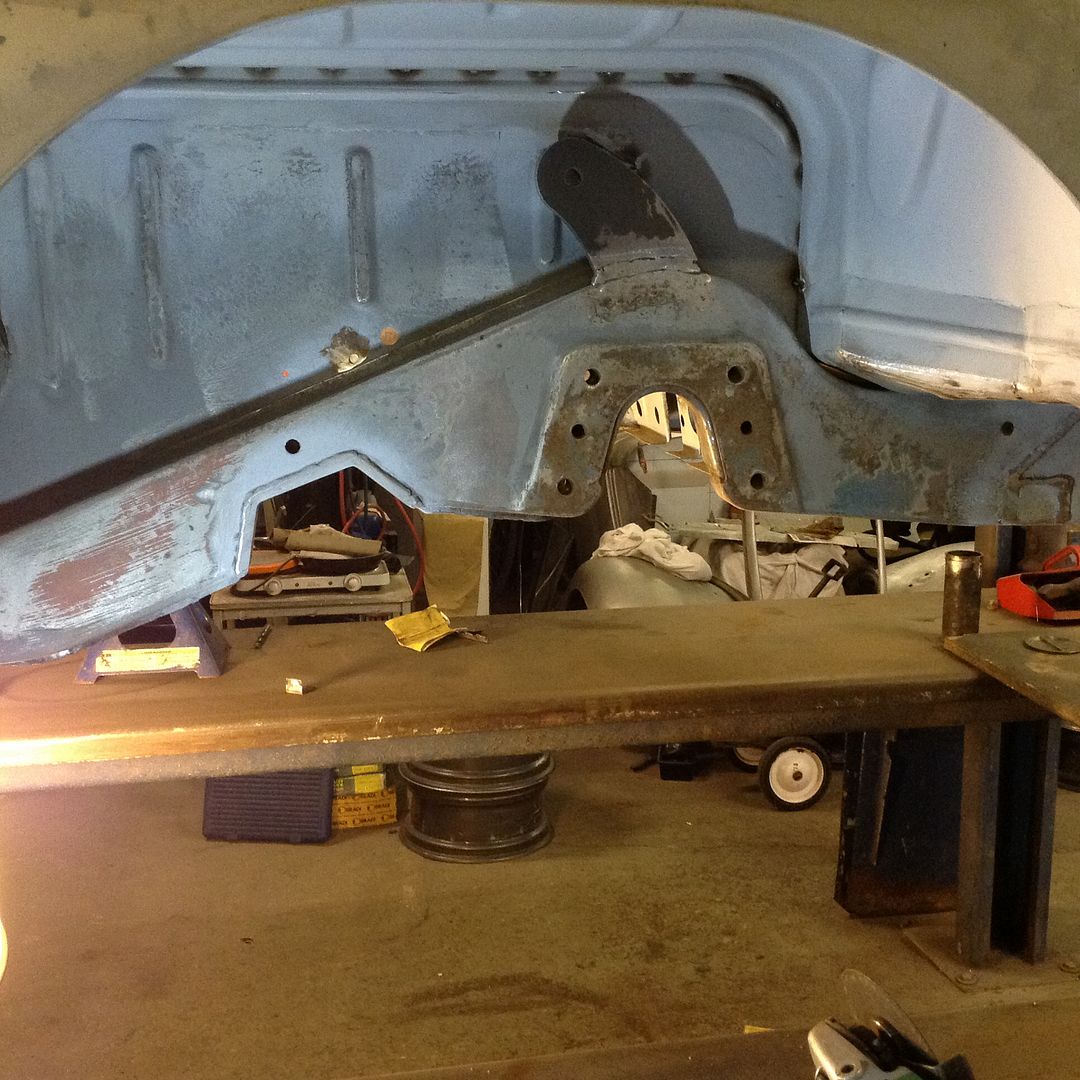

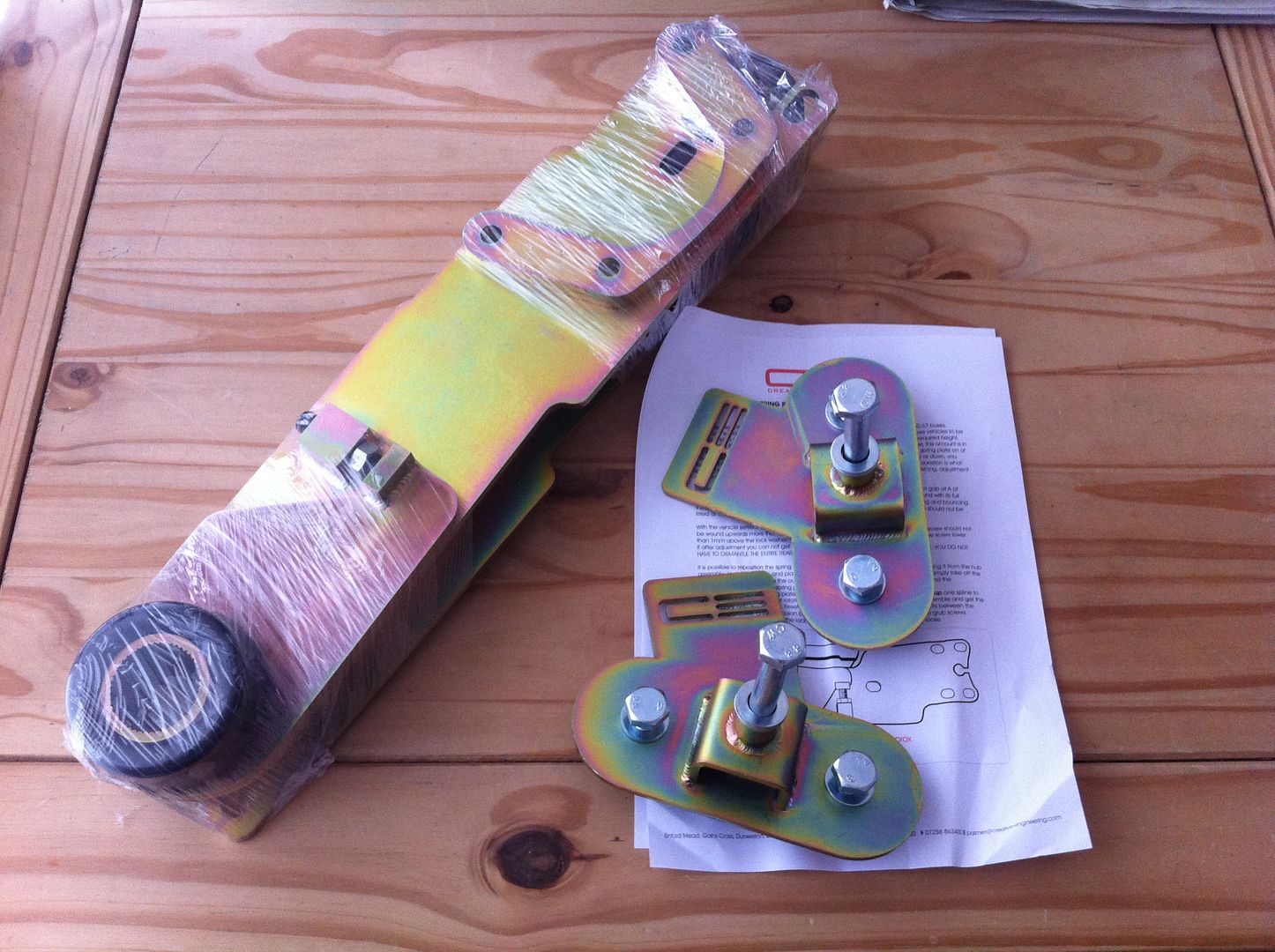

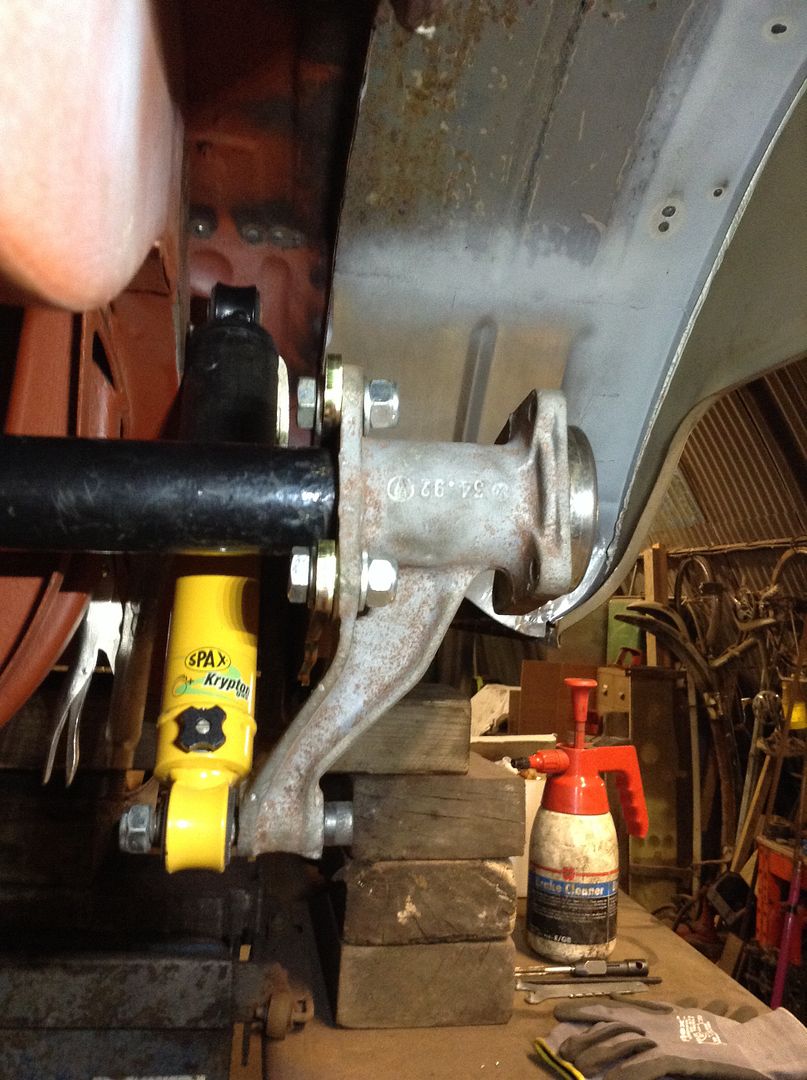

Got spring plates and shock mounts so trial fitted. Stock mount will require removal so got that sorted. Need to do the other side tomorrow. Offered the new mount up will set final position once new shocks arrive.
Alignment is an issue so can see why new mounts are required.







More tomorrow. :cheers:
vanmanjimmer
Registered user
Posts: 347
Joined: Wed May 27, 2009 8:20 am

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by ..Rustbuster.. » Thu Apr 02, 2015 2:01 pm
vanmanjimmer wrote:Cheers for the encouragement guys, I'm still on it. One of those weeks I think. Another late finish from work today, will get on it early tomorrow!

Marco, the hinges are straight forward, I managed to keep a set of holes on the inner skin so just drilled through from inside with my 90 degree air drill.



ahh i see, smart move.
..Rustbuster..
SSVC Member
Posts: 32
Joined: Mon Oct 27, 2014 3:08 pm

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by vanmanjimmer » Thu Apr 02, 2015 8:32 pm
Evening guys,

Had a couple of days working in the Scottish Borders this week so not much progress. However had a present waiting for me when I got home today!

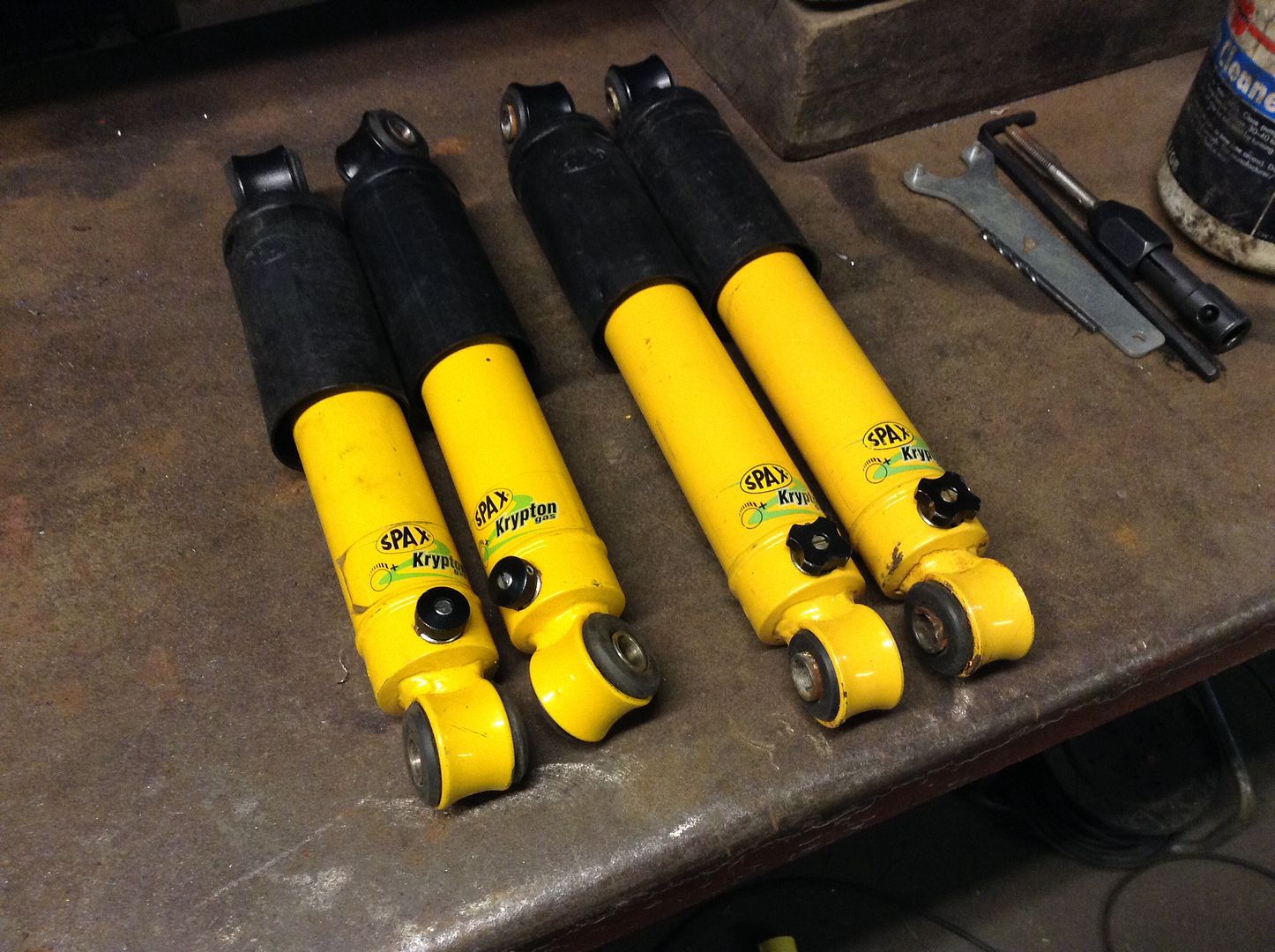

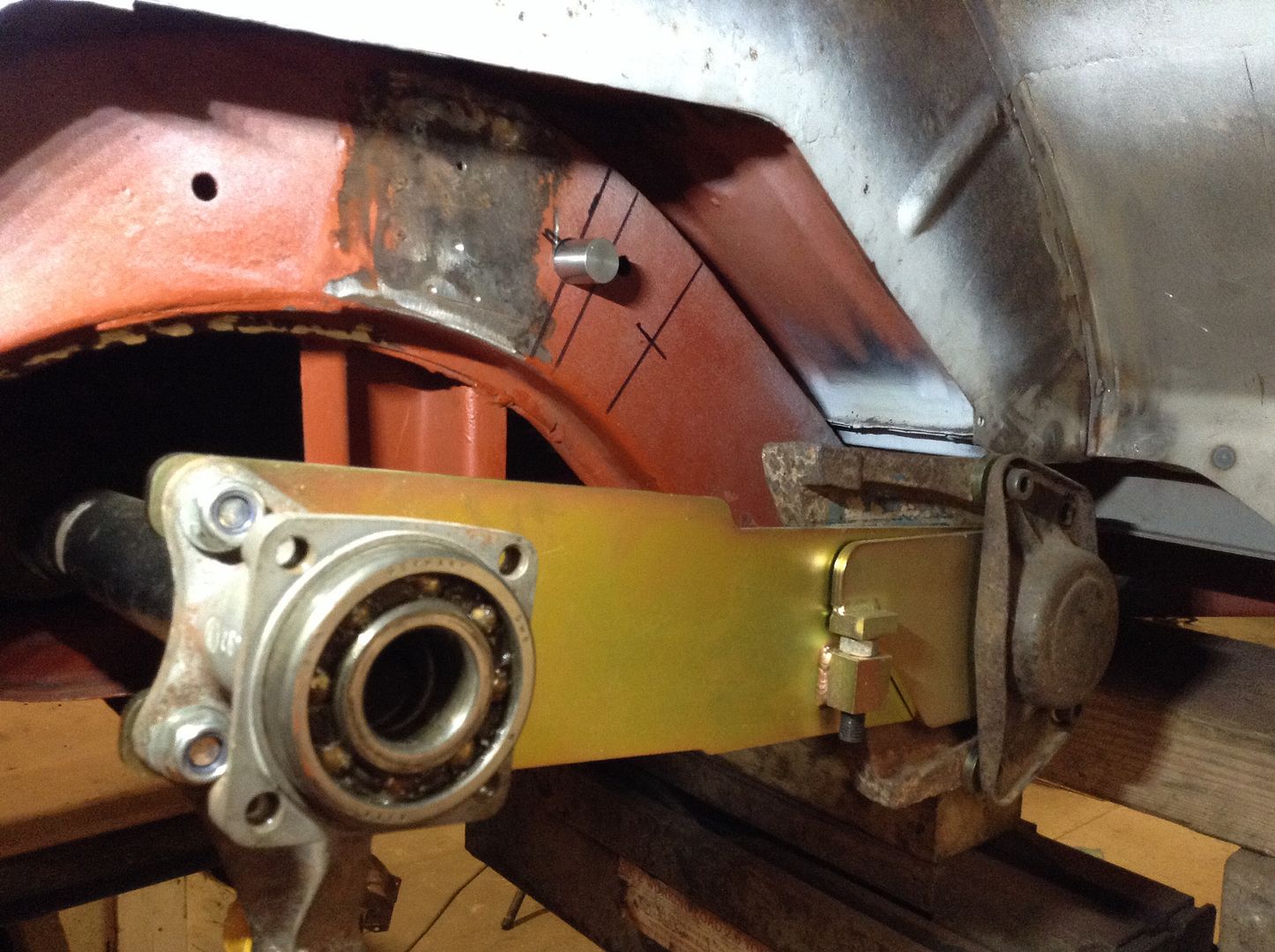

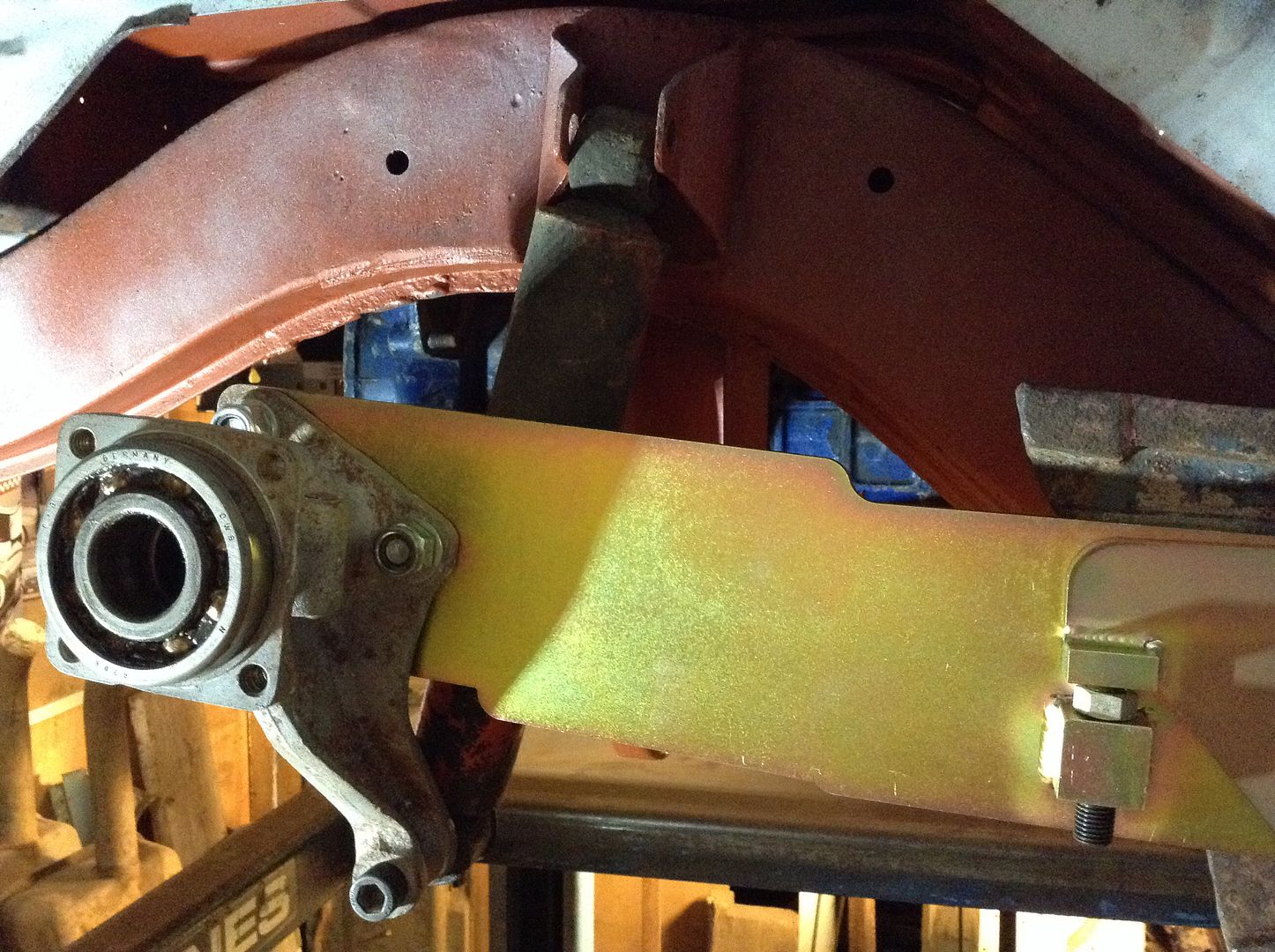

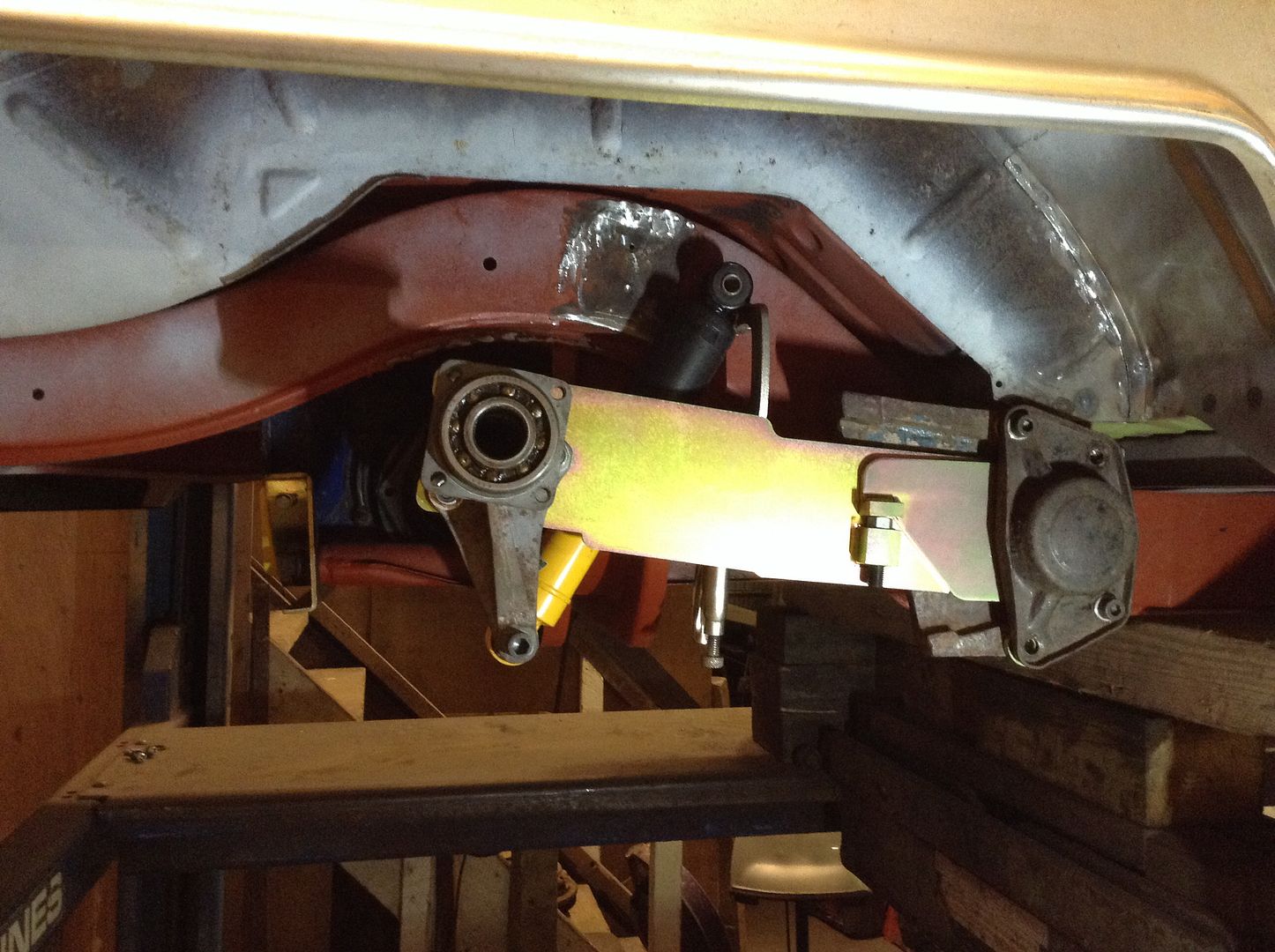

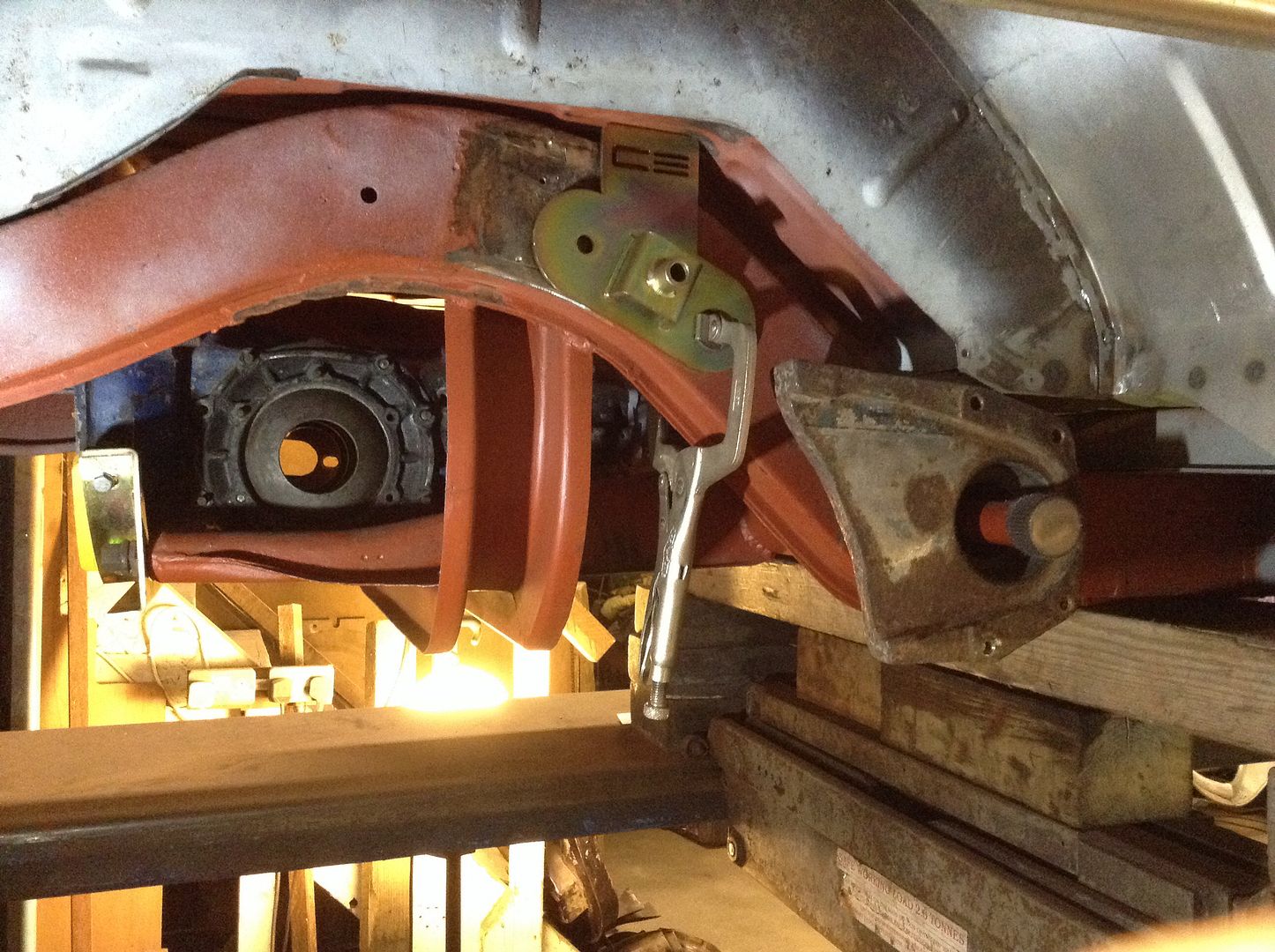

Did a trial fit on the o/s/r, all went well however I did realise that I will not be able to use the CE mounts I bought! So I need to come up with some home brewed mounts in the chassis.



Bus work on Saturday! :cheers:
vanmanjimmer
Registered user
Posts: 347
Joined: Wed May 27, 2009 8:20 am

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by pokey » Thu Apr 02, 2015 8:37 pm
id trim the metal above the spring plate if your planning on running it low, the front spindles look good, I've gone for boxster ones on mine will have to see if i can get them in as i don't really fancy the wider track
pokey
Registered user
Posts: 617
Joined: Tue Jul 08, 2008 4:27 pm

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by vanmanjimmer » Sun Apr 05, 2015 8:54 am
Morning, bus day yesterday and it was a reasonably productive one.

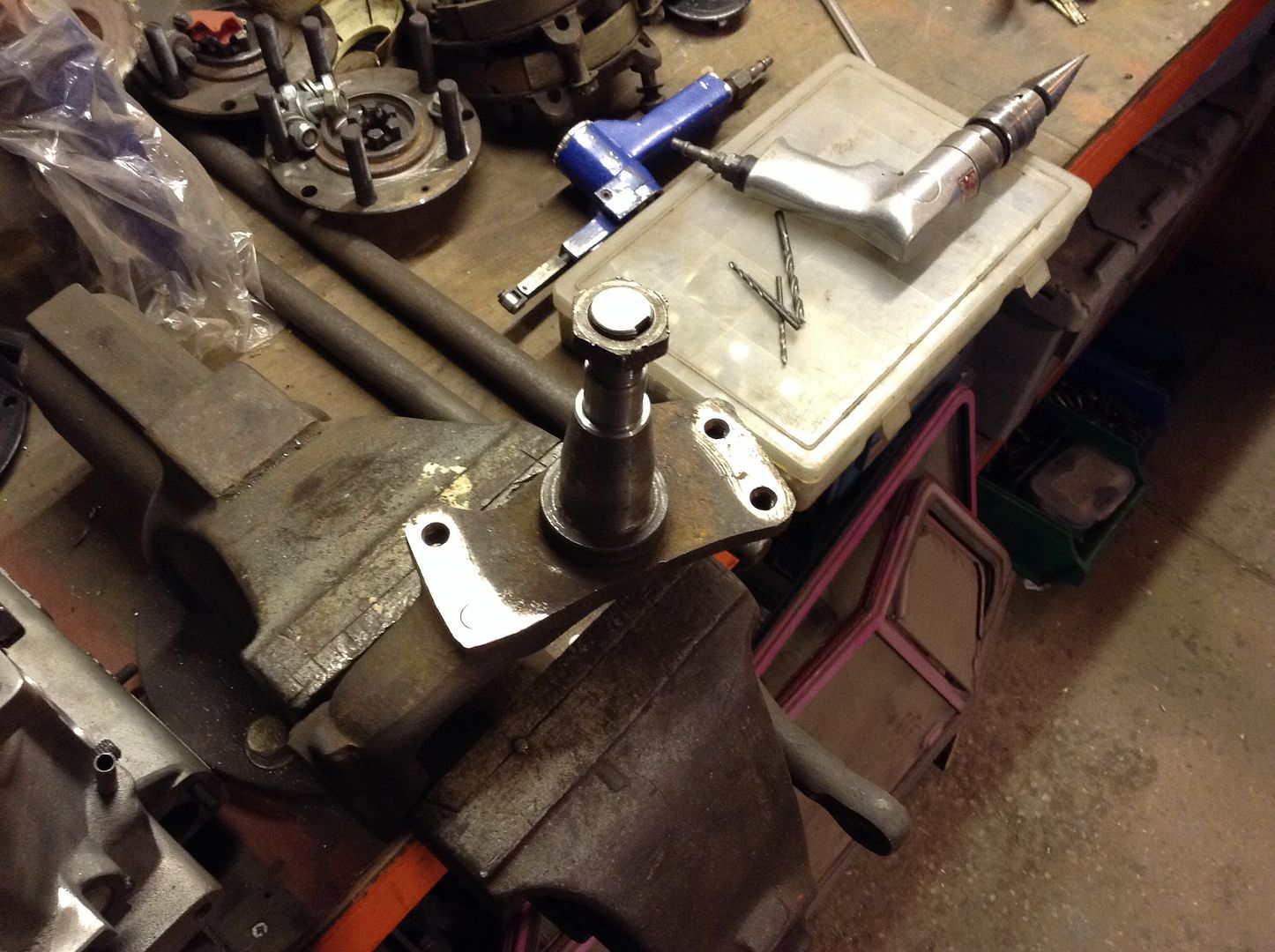

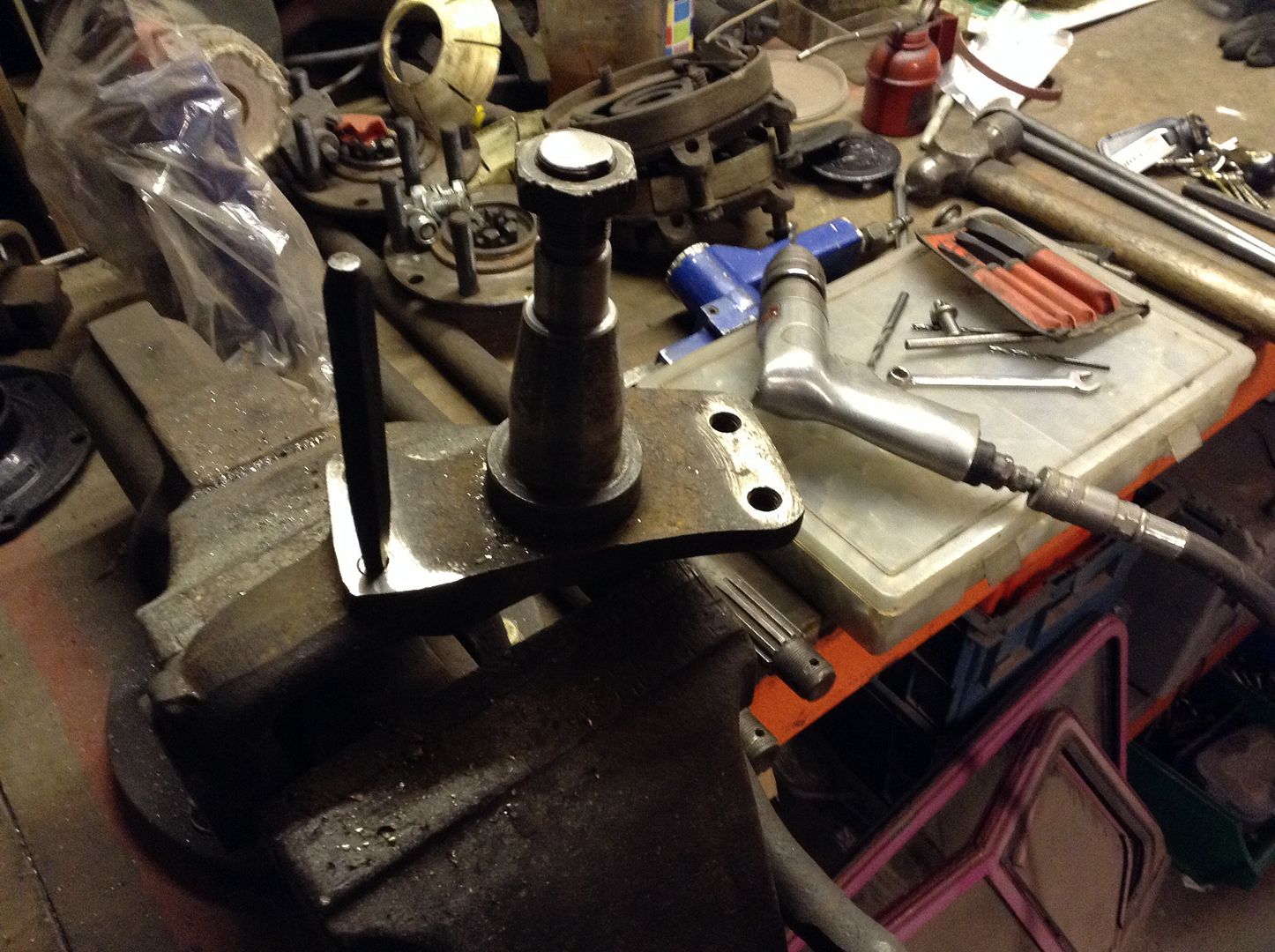

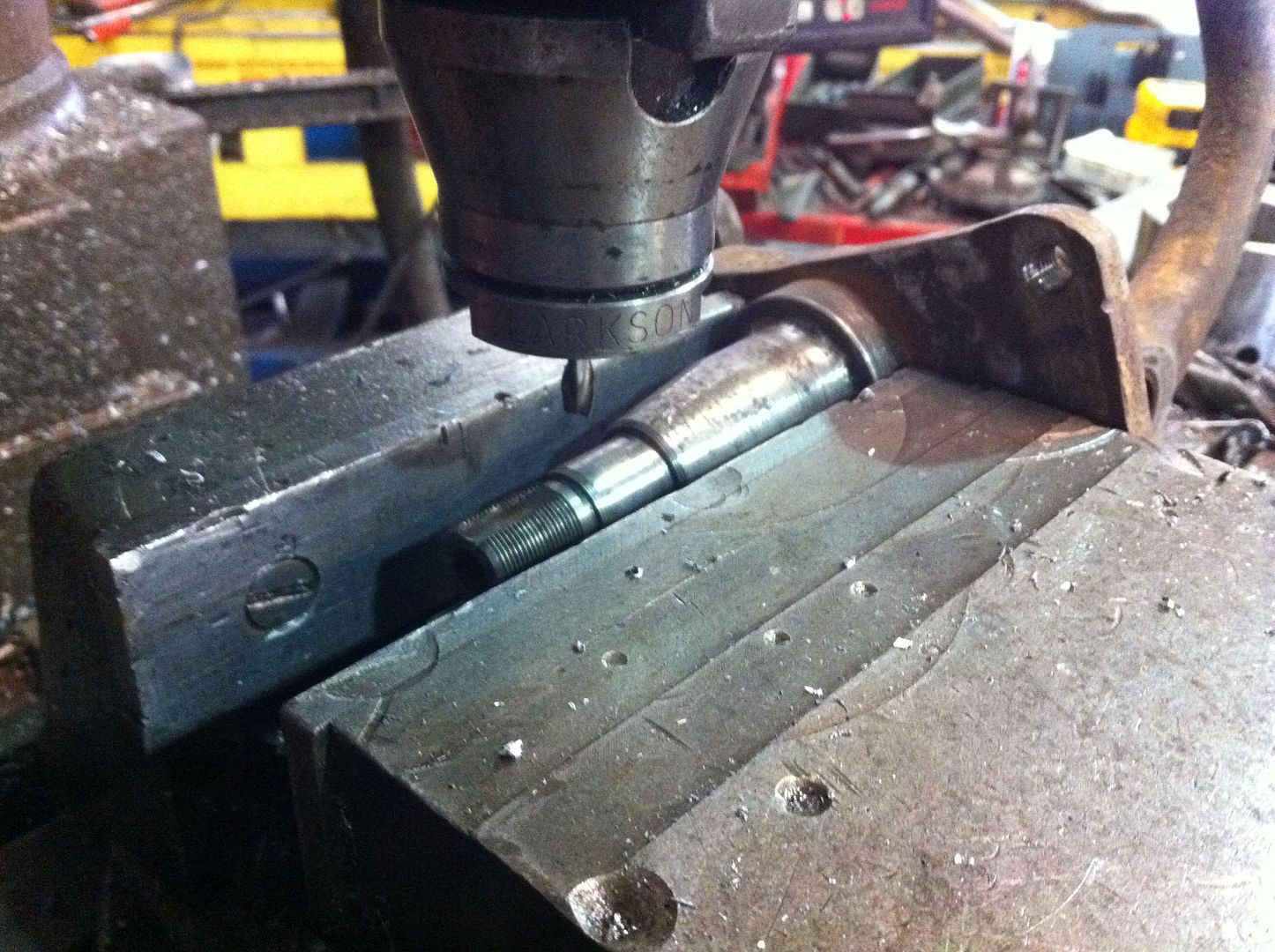

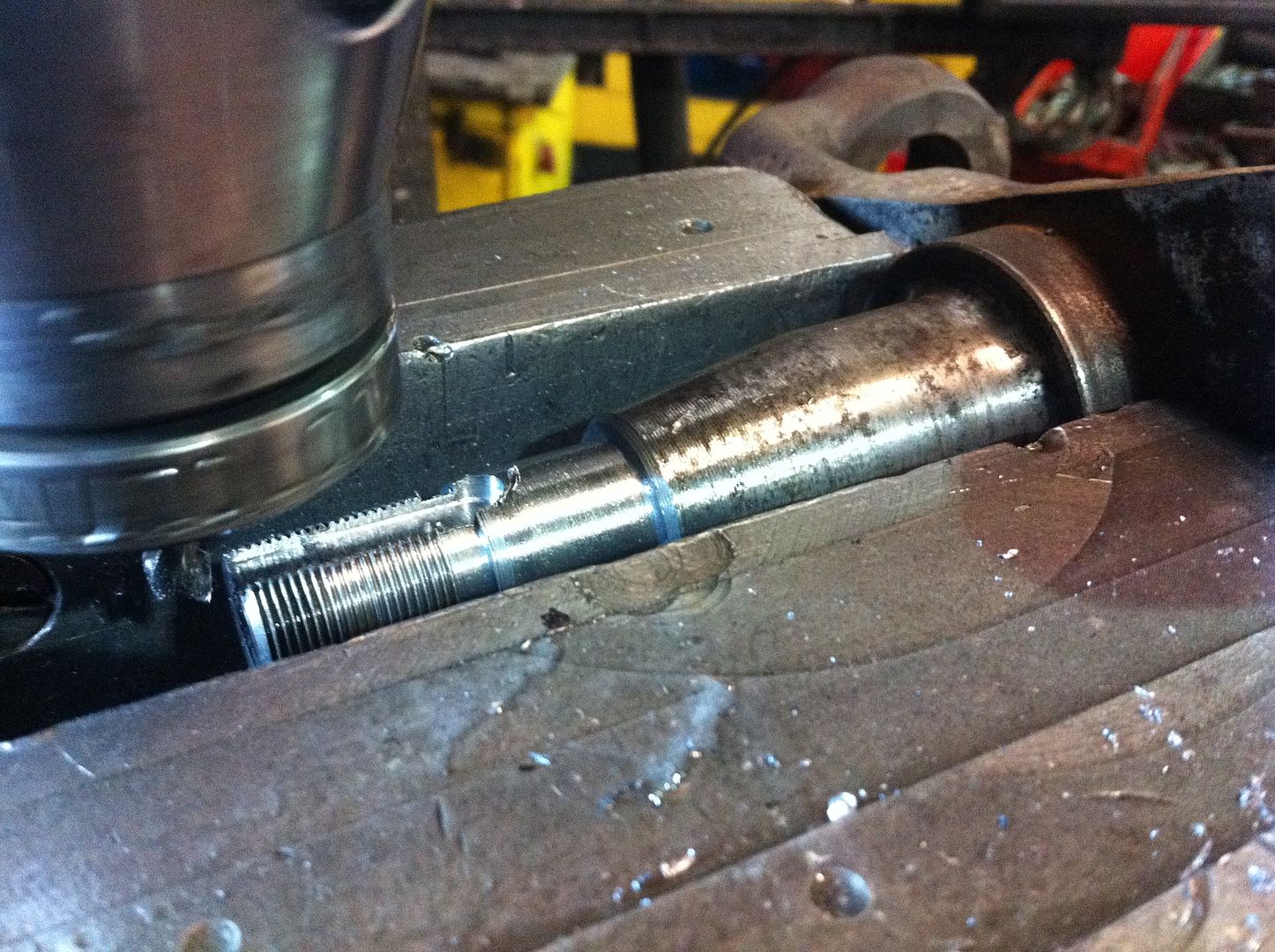

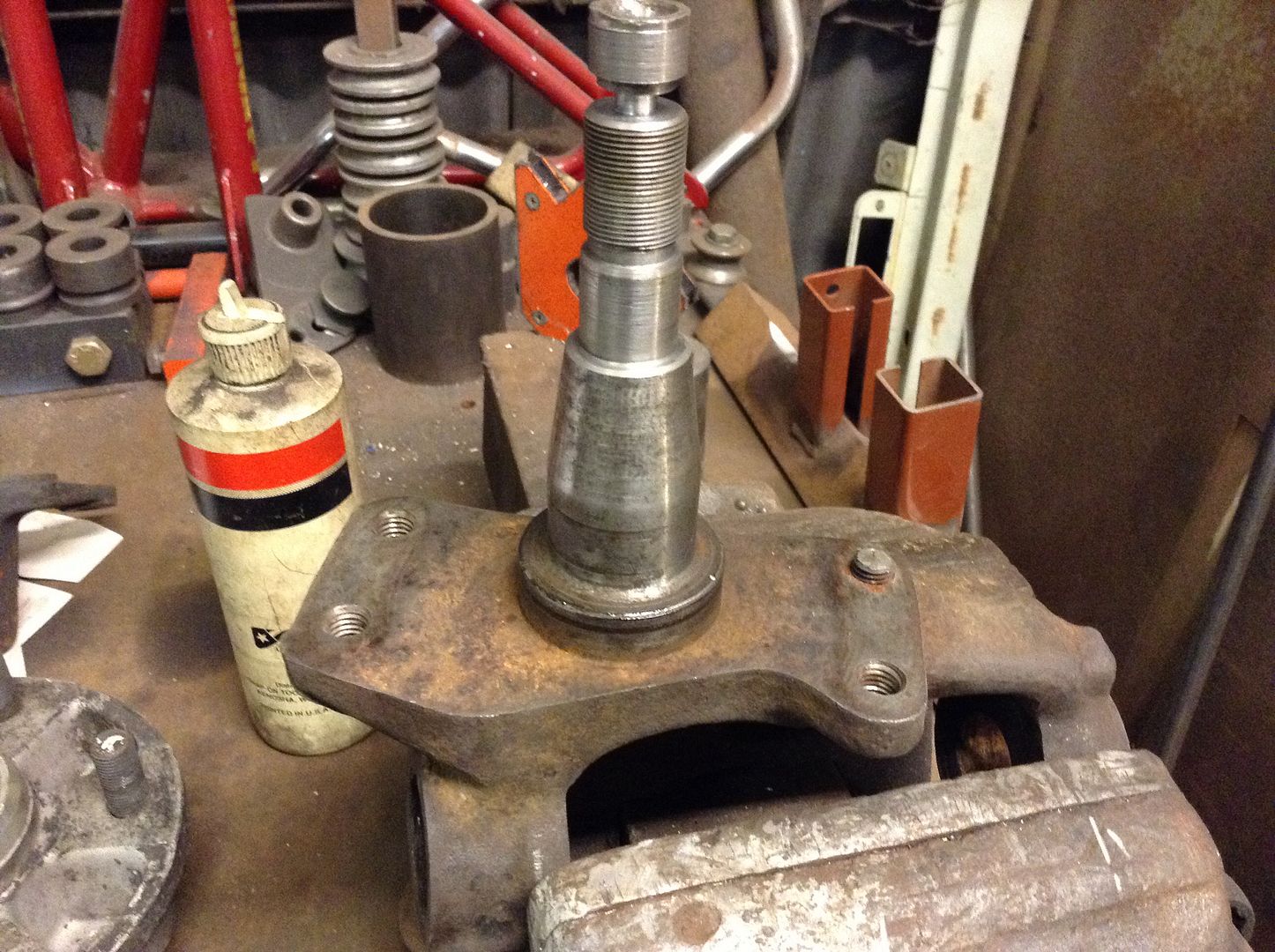

First up was finishing my spindles needed to extend the locking washer groove down the spindle.

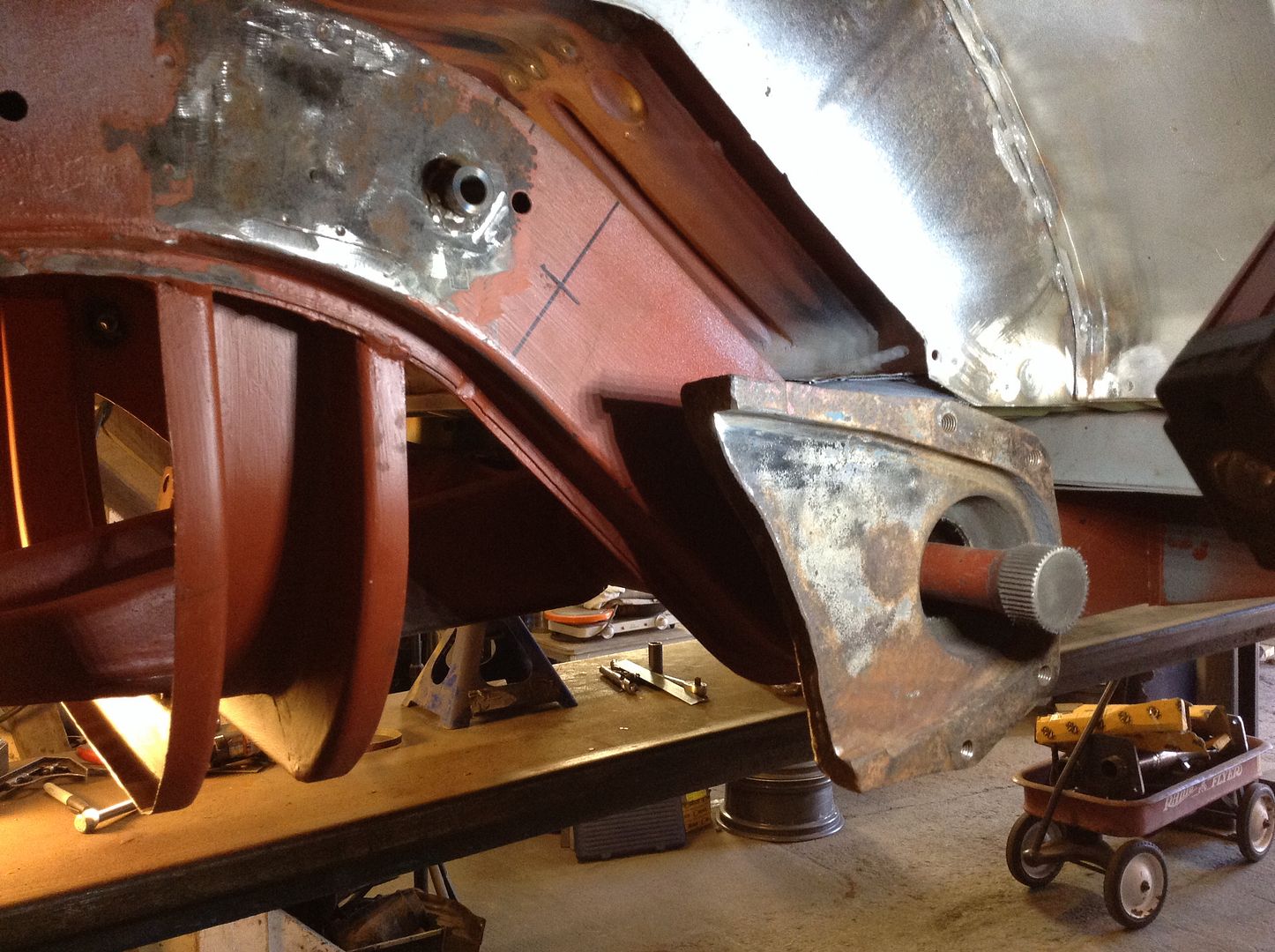

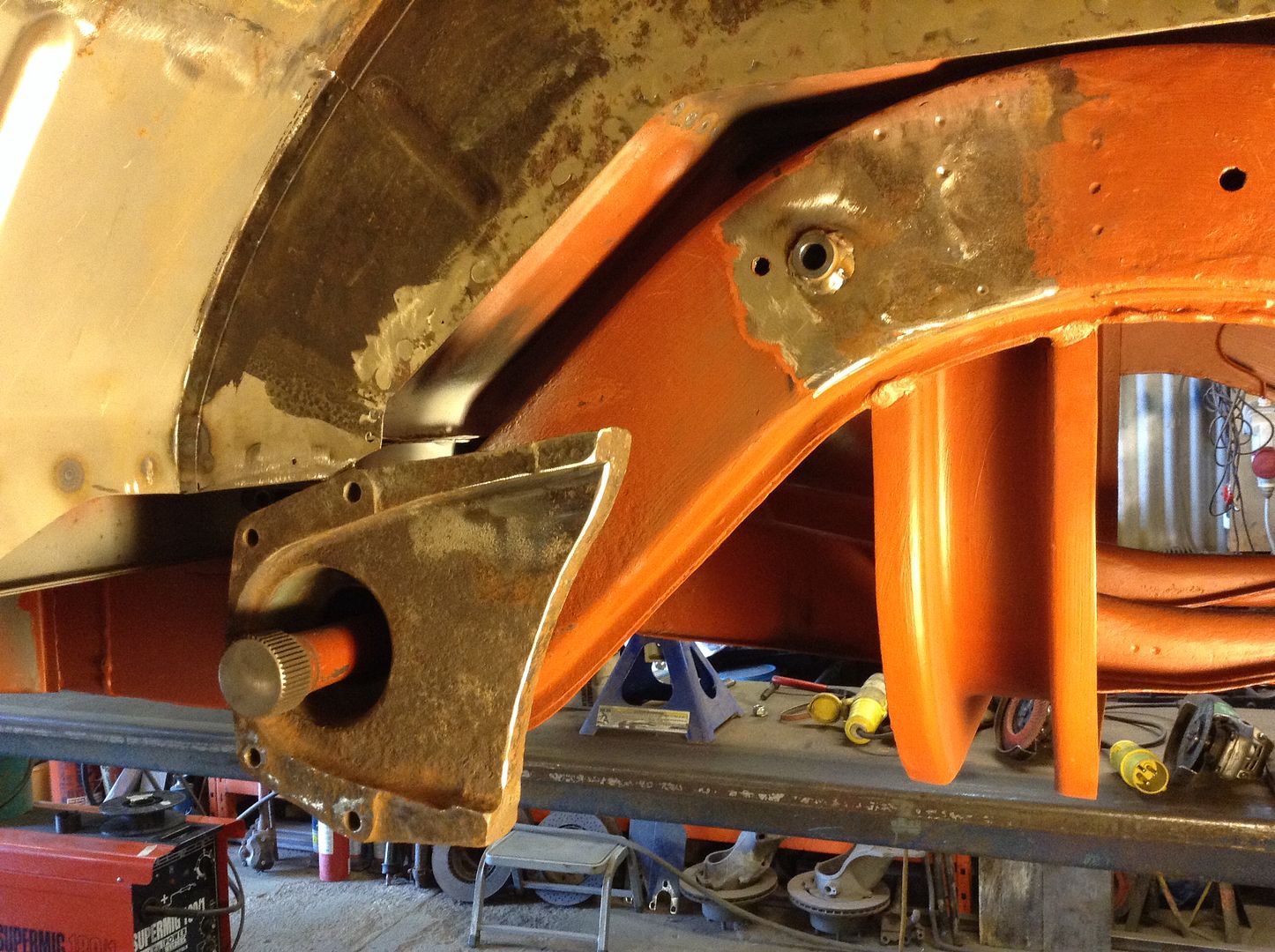

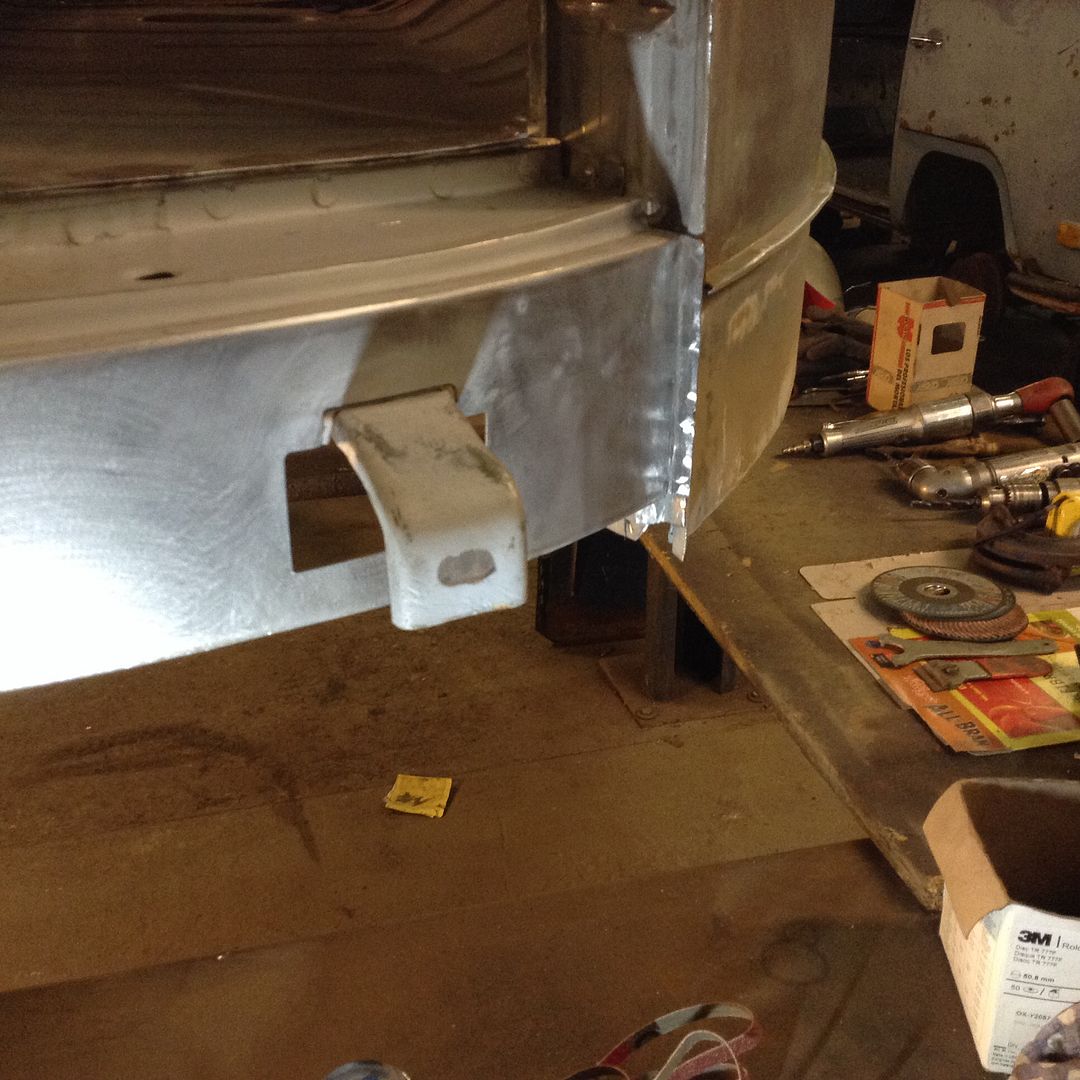

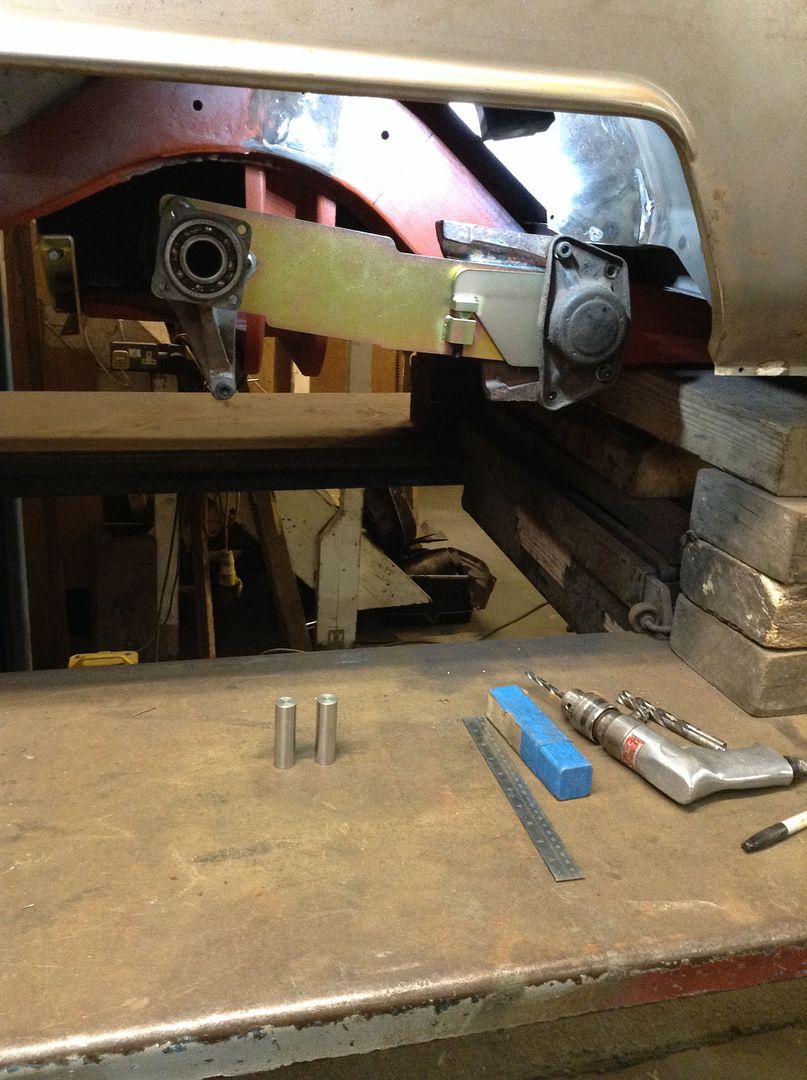

With that finished I started looking at the rear shock mounts, with these I have decided to install a 20mm diameter boss in the chassis, after working out the positioning I have drilled through the rails the boss will then be welded into position once I have drilled it to take a bolt of course.

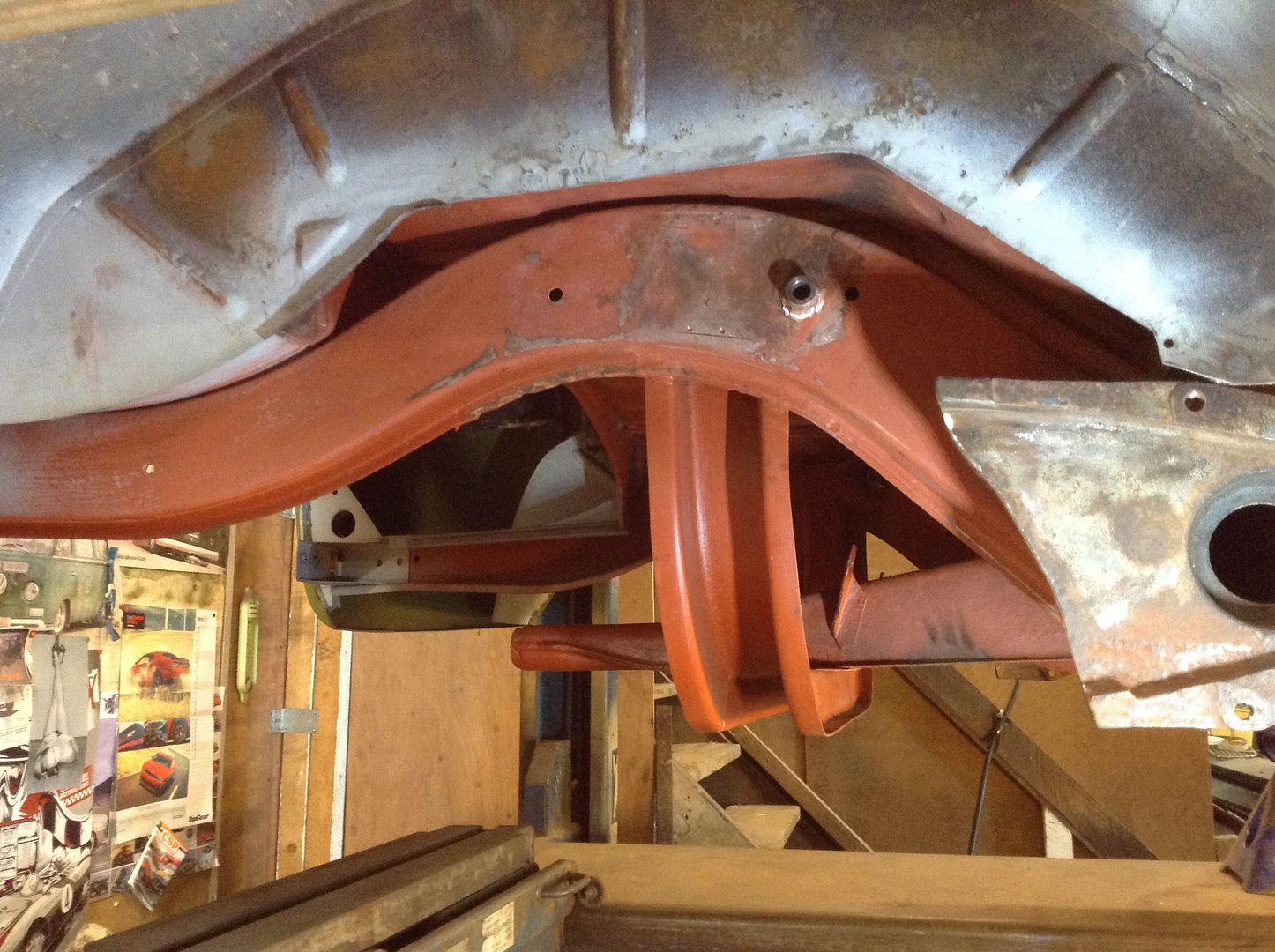

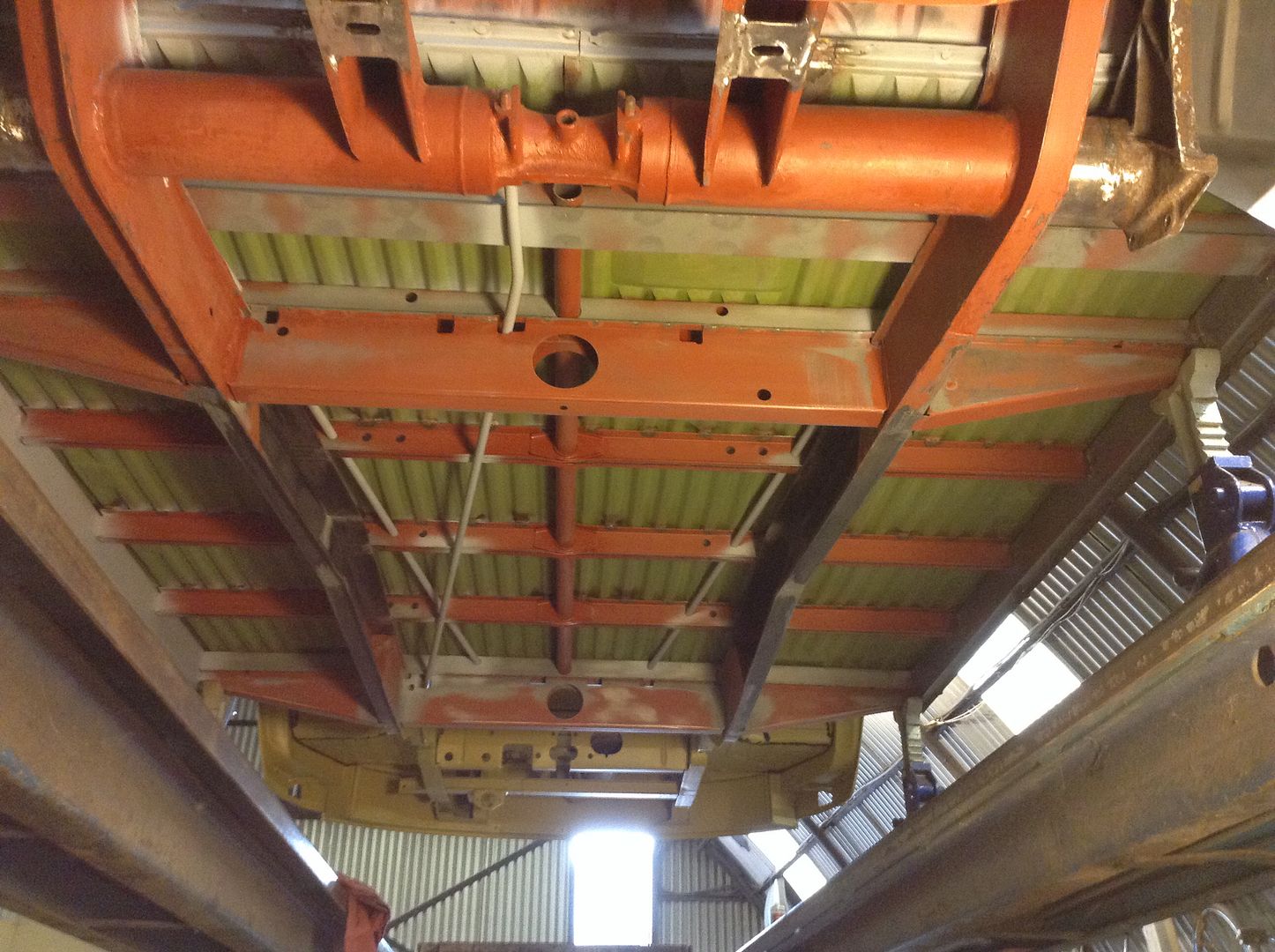

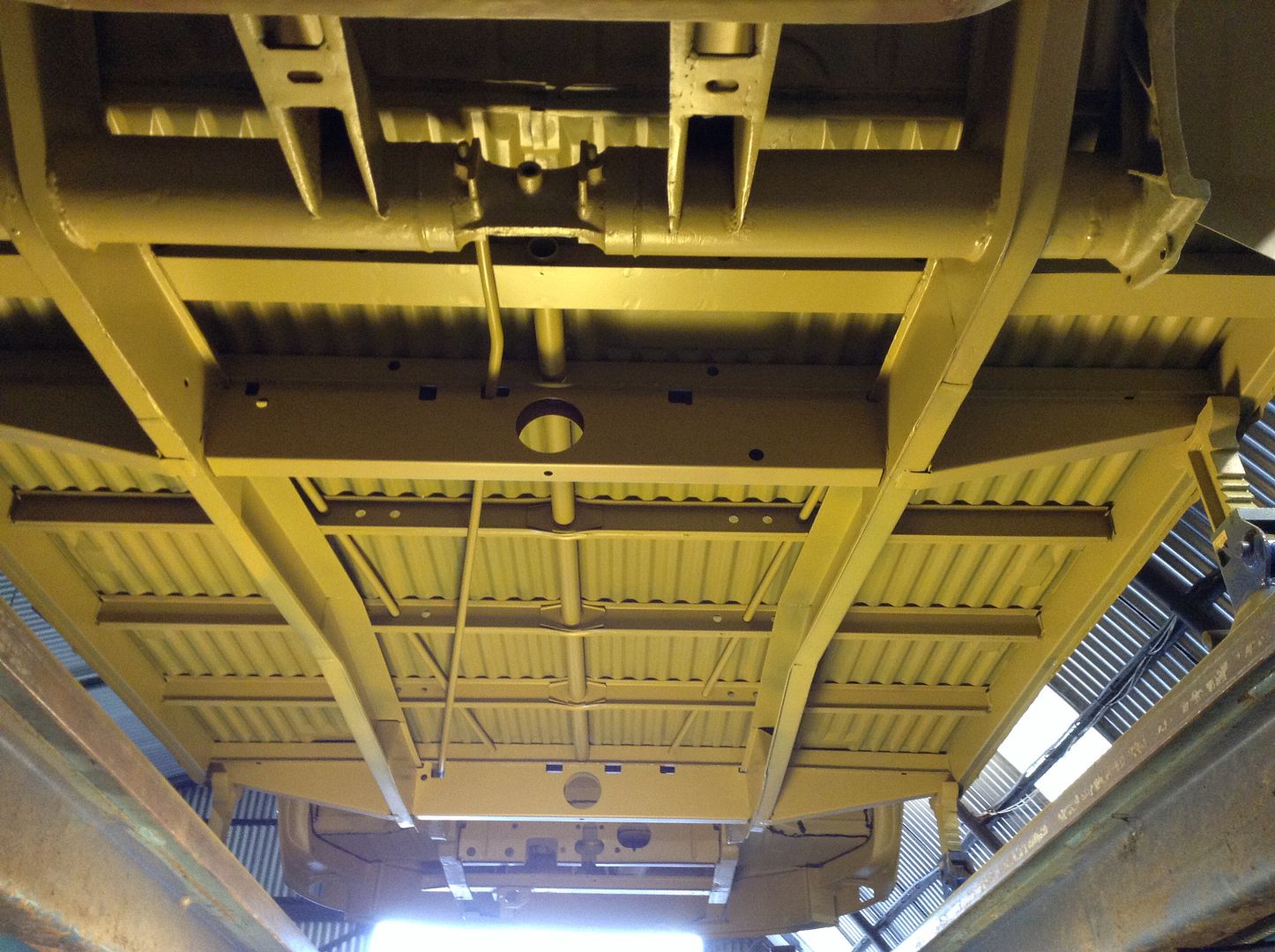

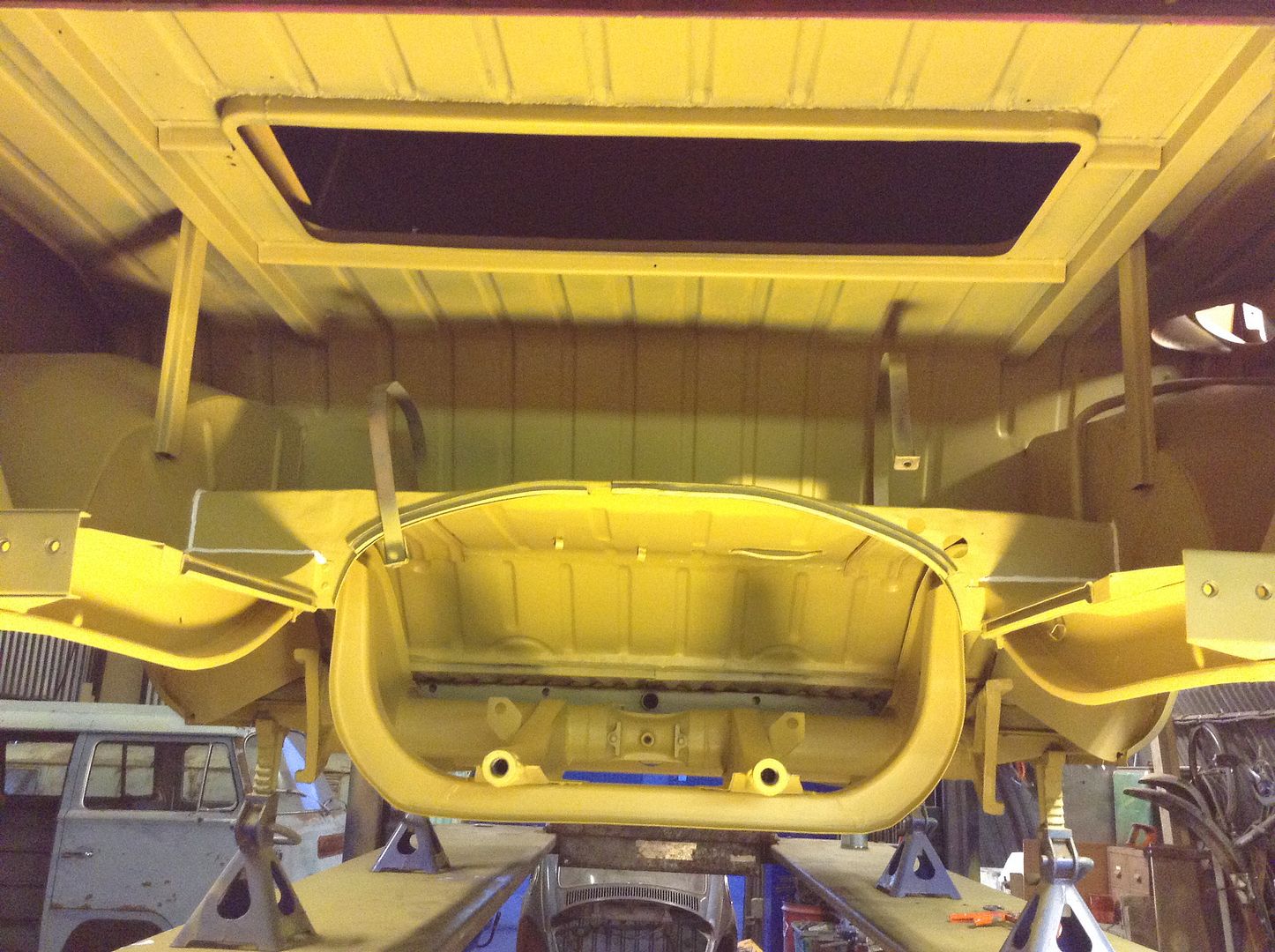

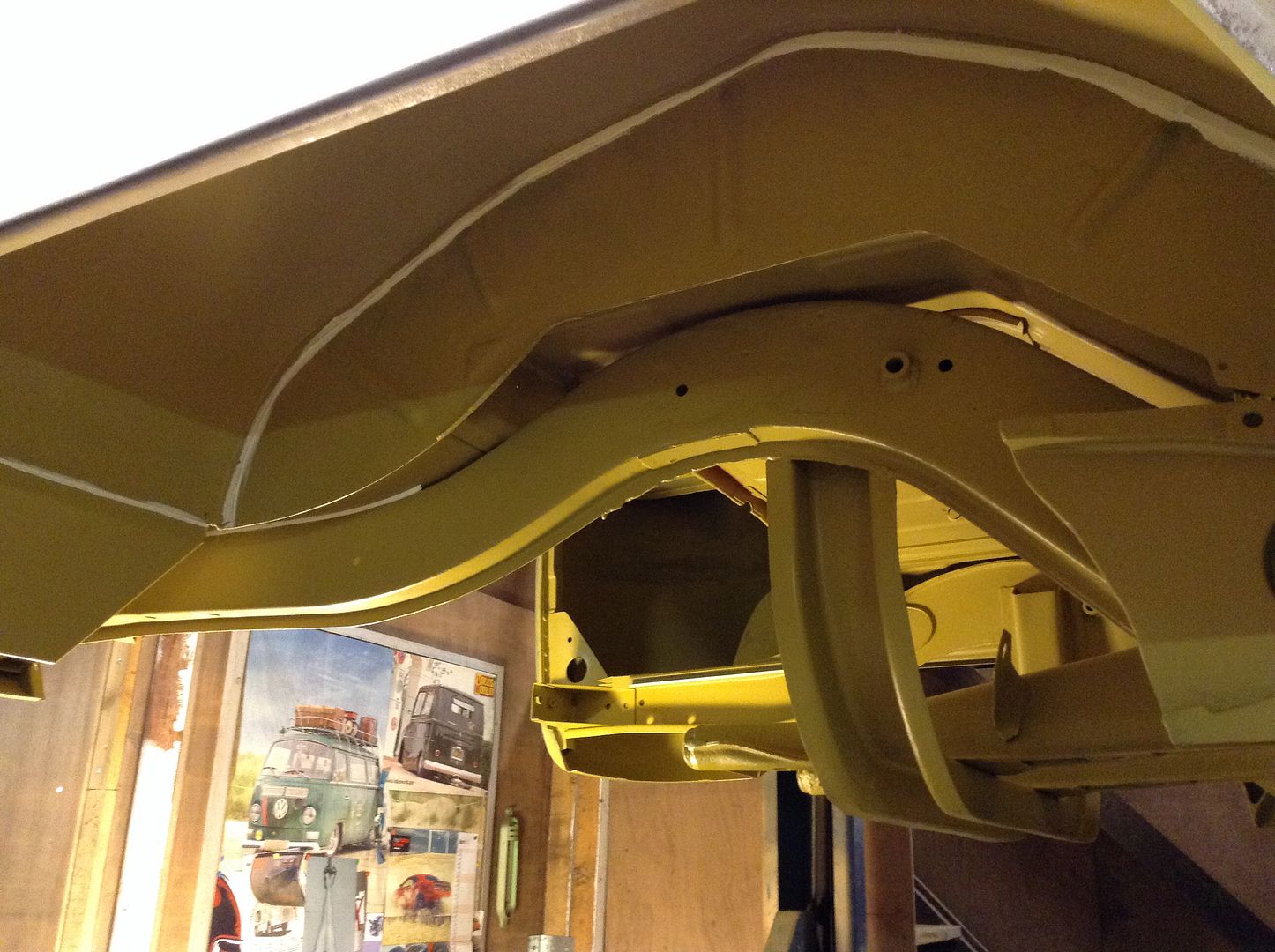

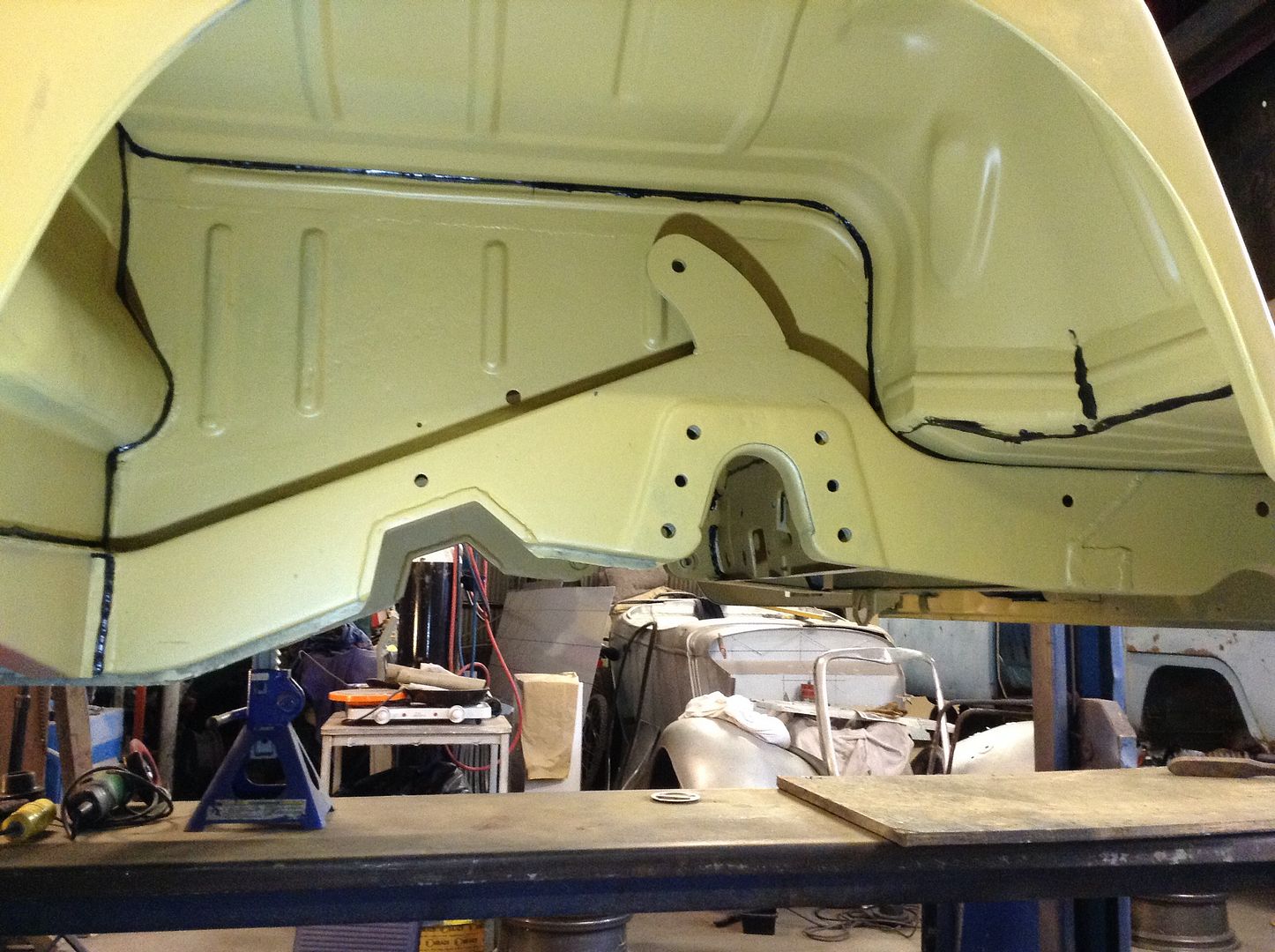

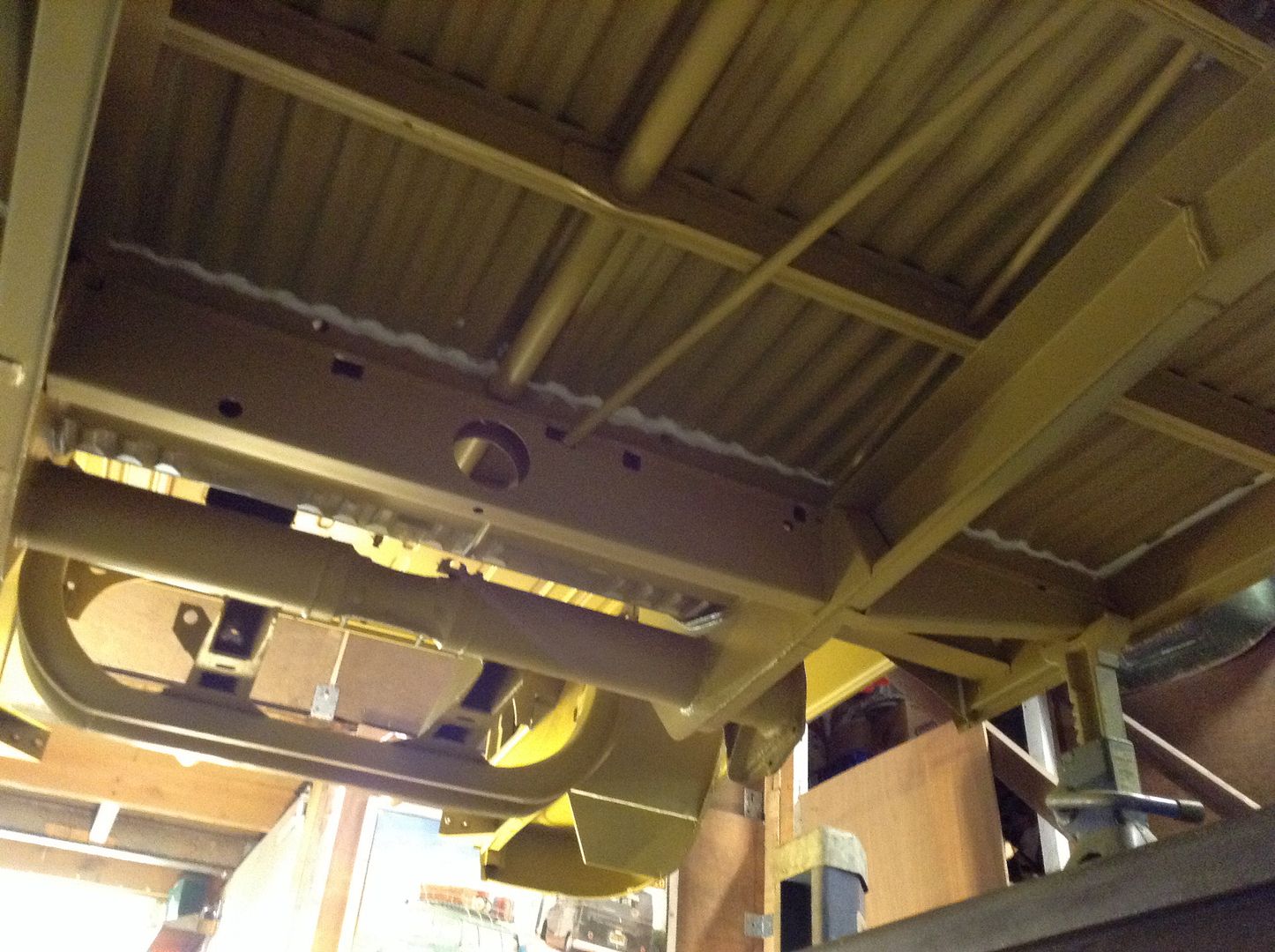

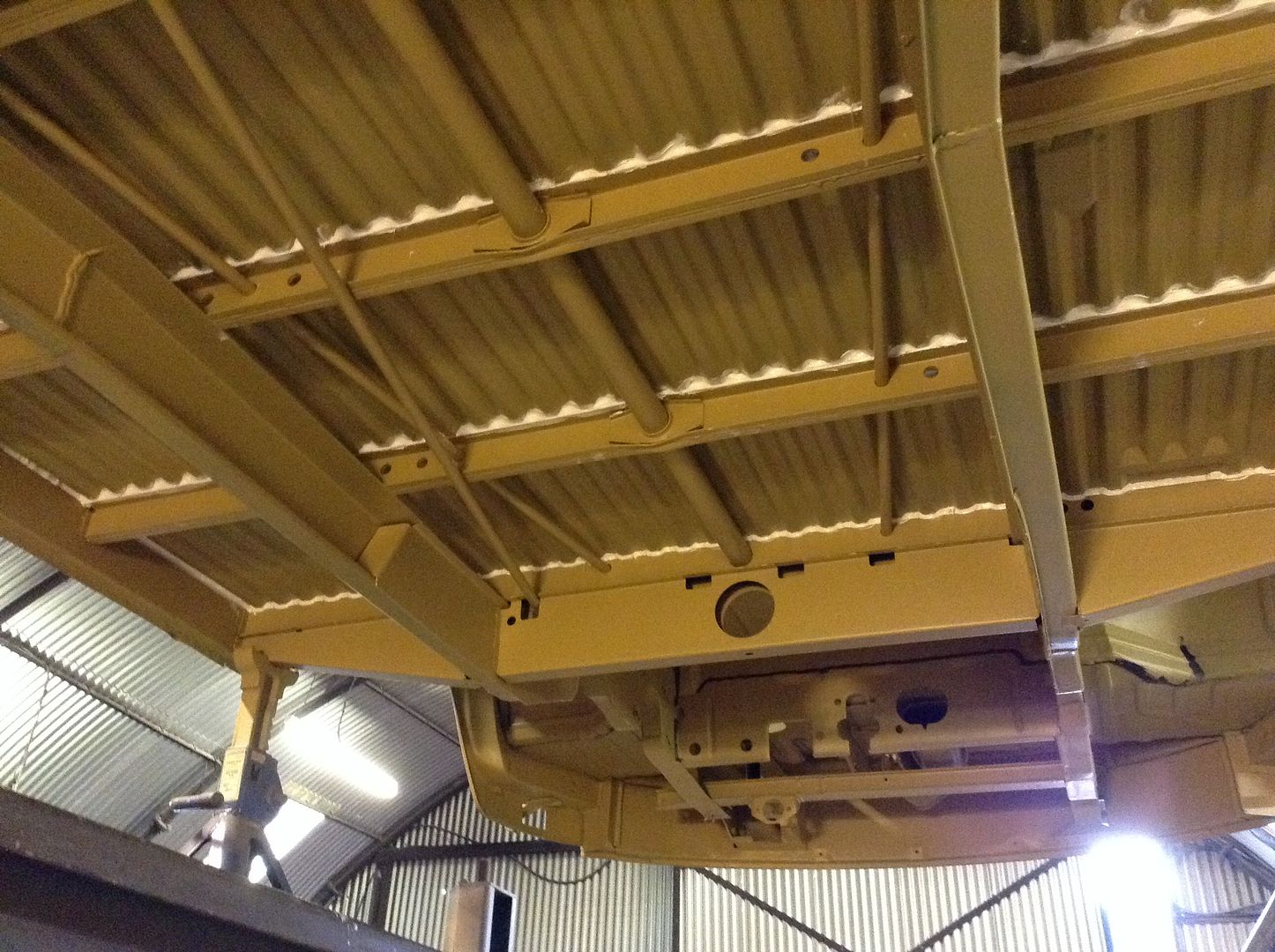

And finally we got some etch primer around the front underside and cab floor and seam sealing :cheers: .




More tomorrow. :compress:
vanmanjimmer
Registered user
Posts: 347
Joined: Wed May 27, 2009 8:20 am

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by vanmanjimmer » Mon Apr 06, 2015 8:22 pm
Got over the unit today made some progress,

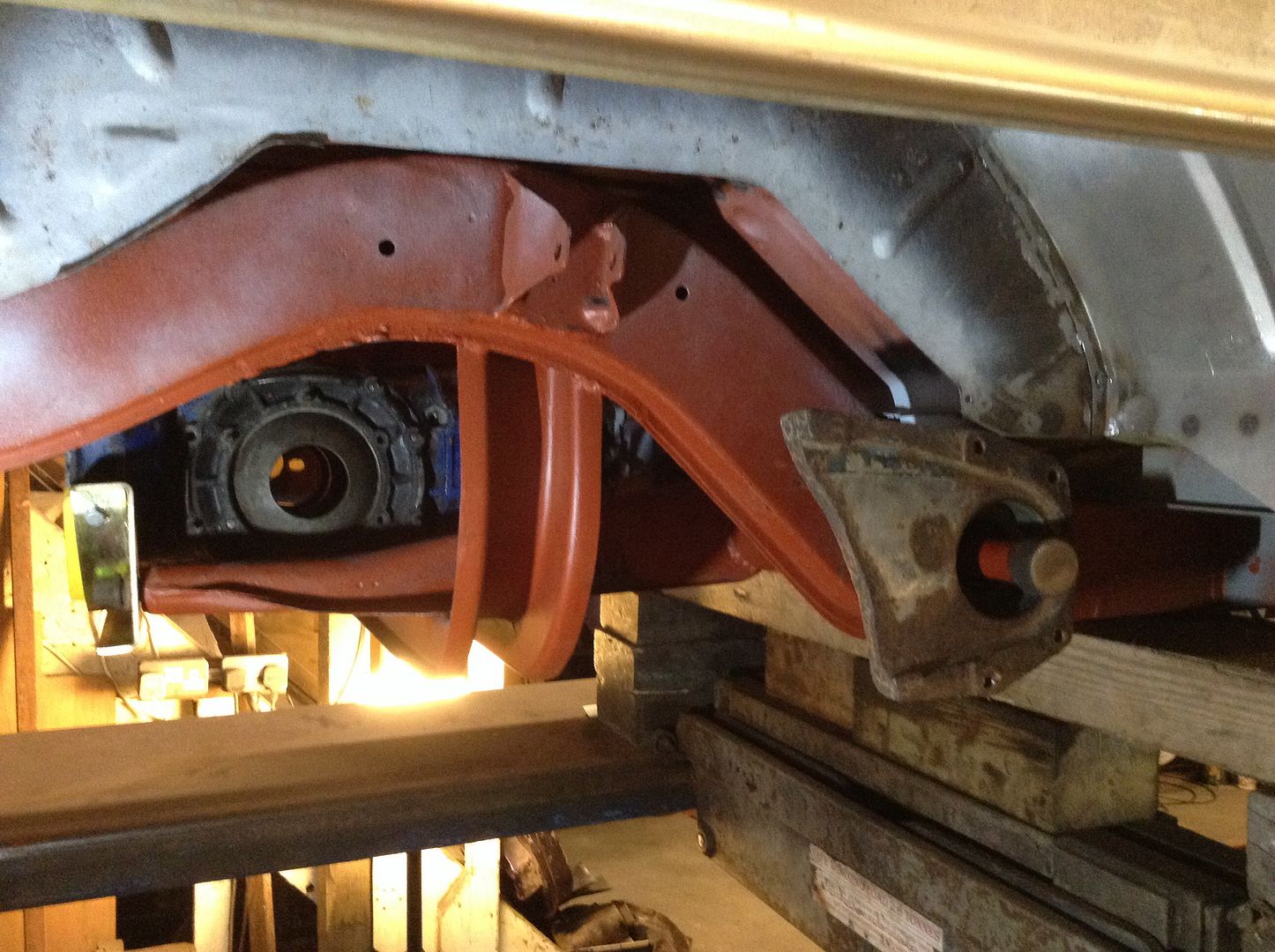

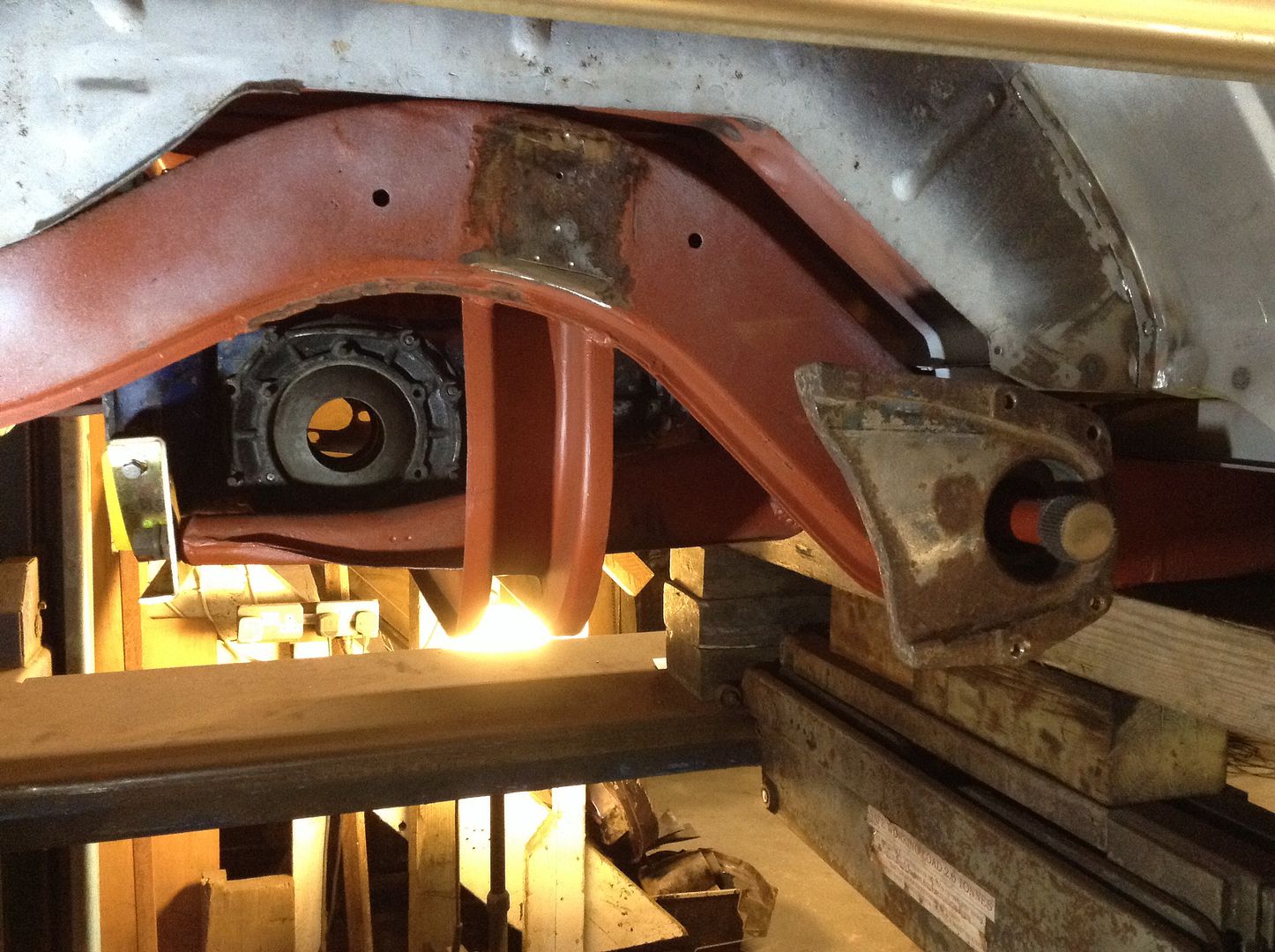

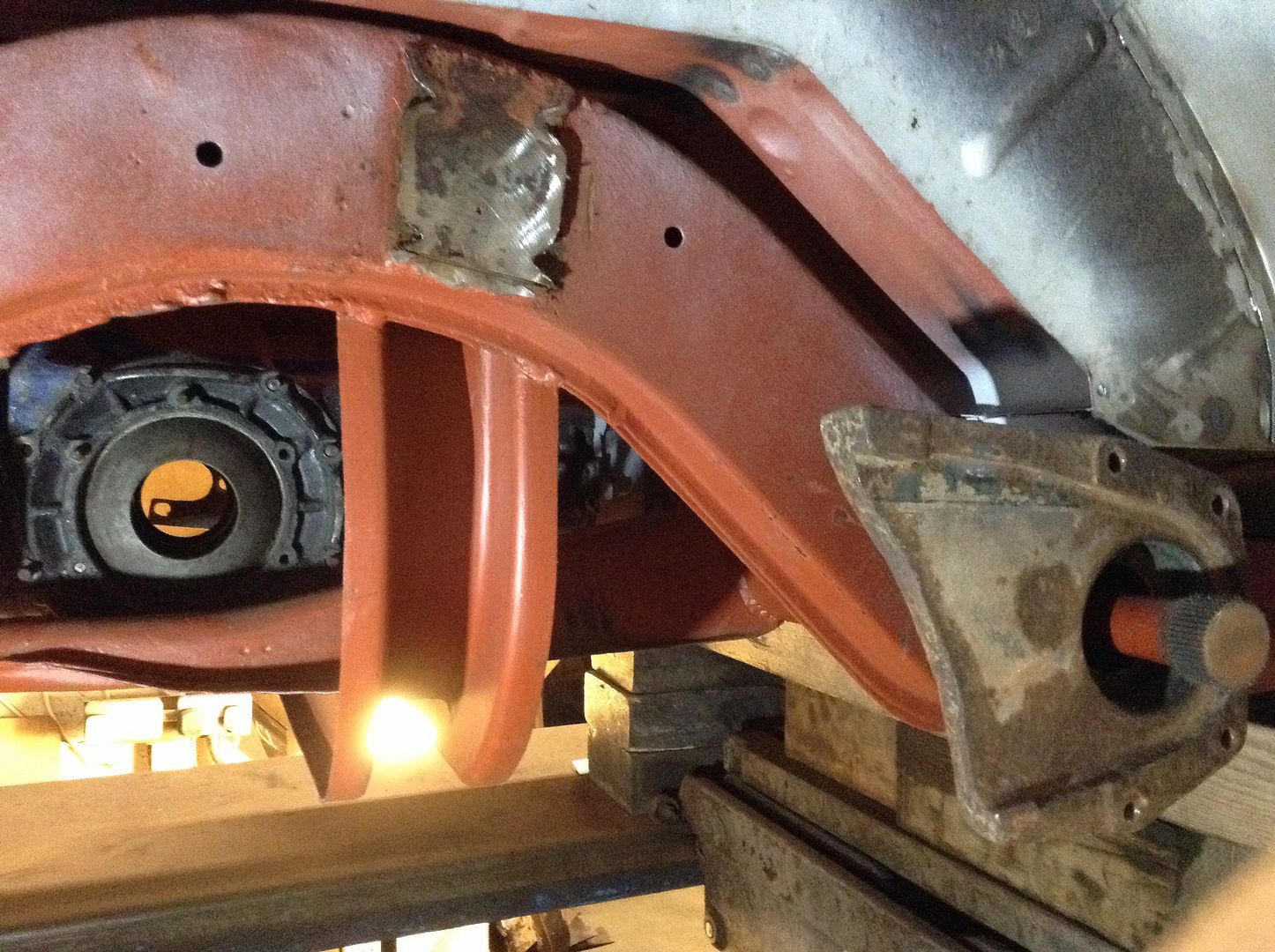

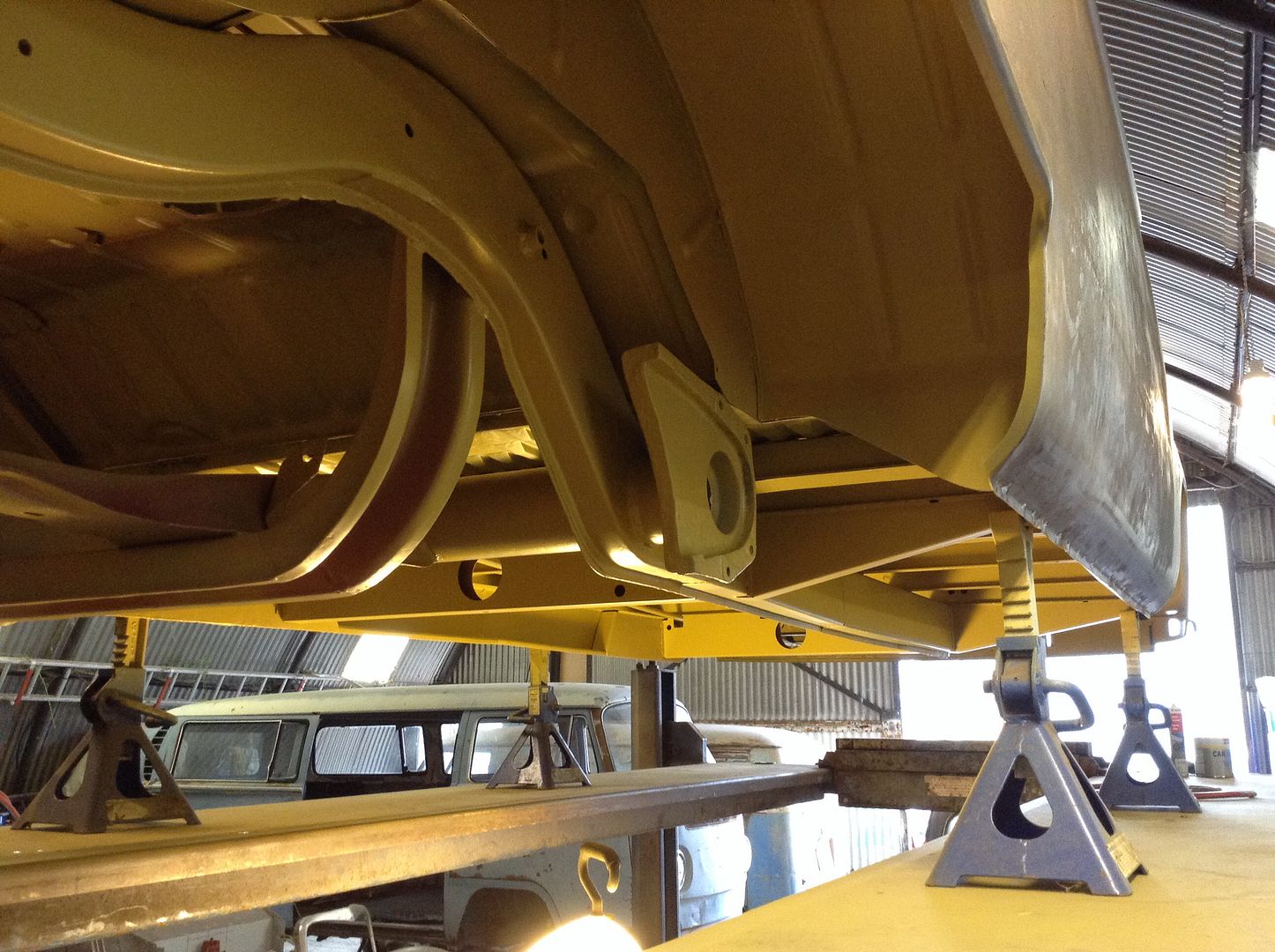

Got the shock mounts in.

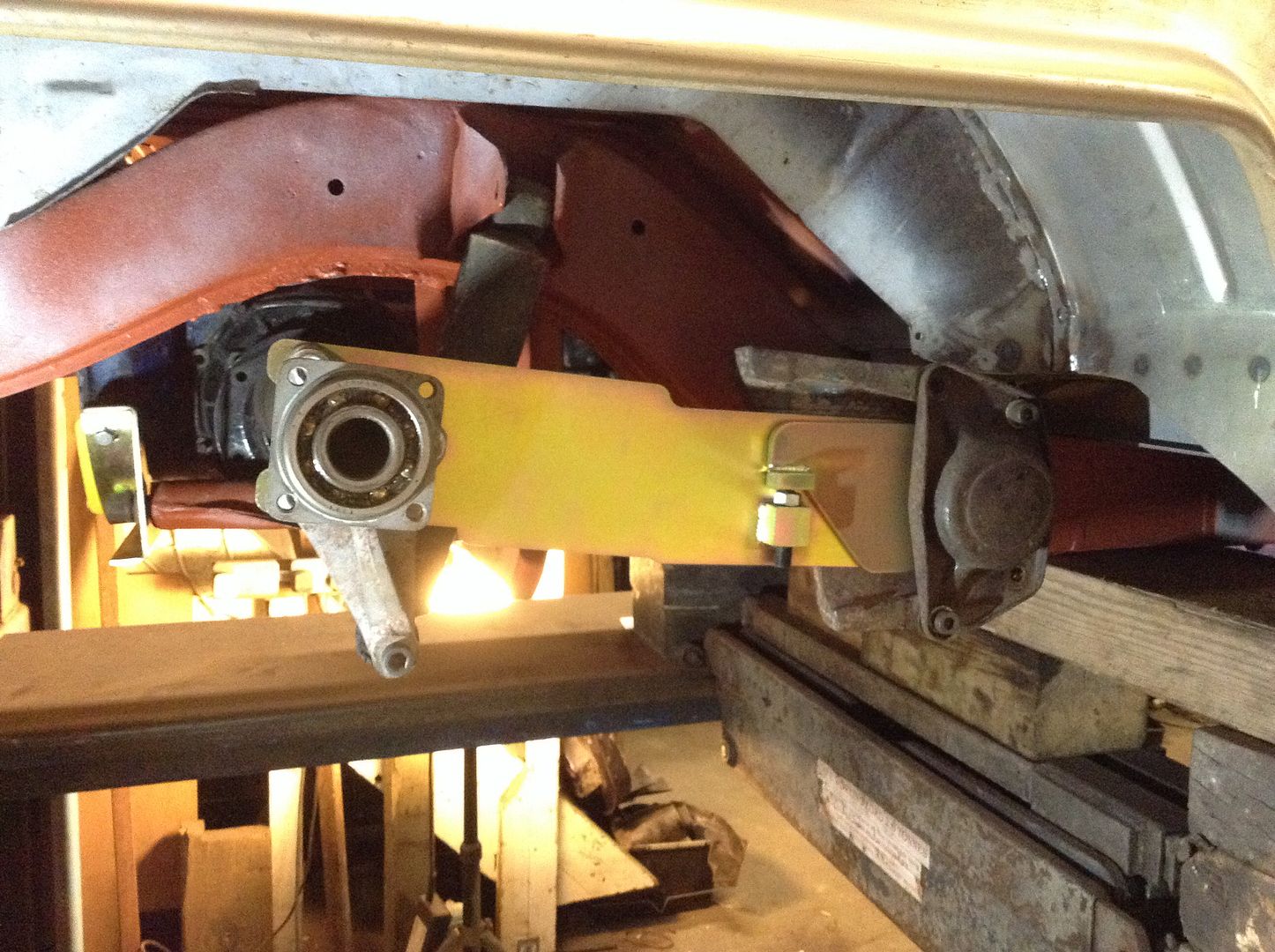

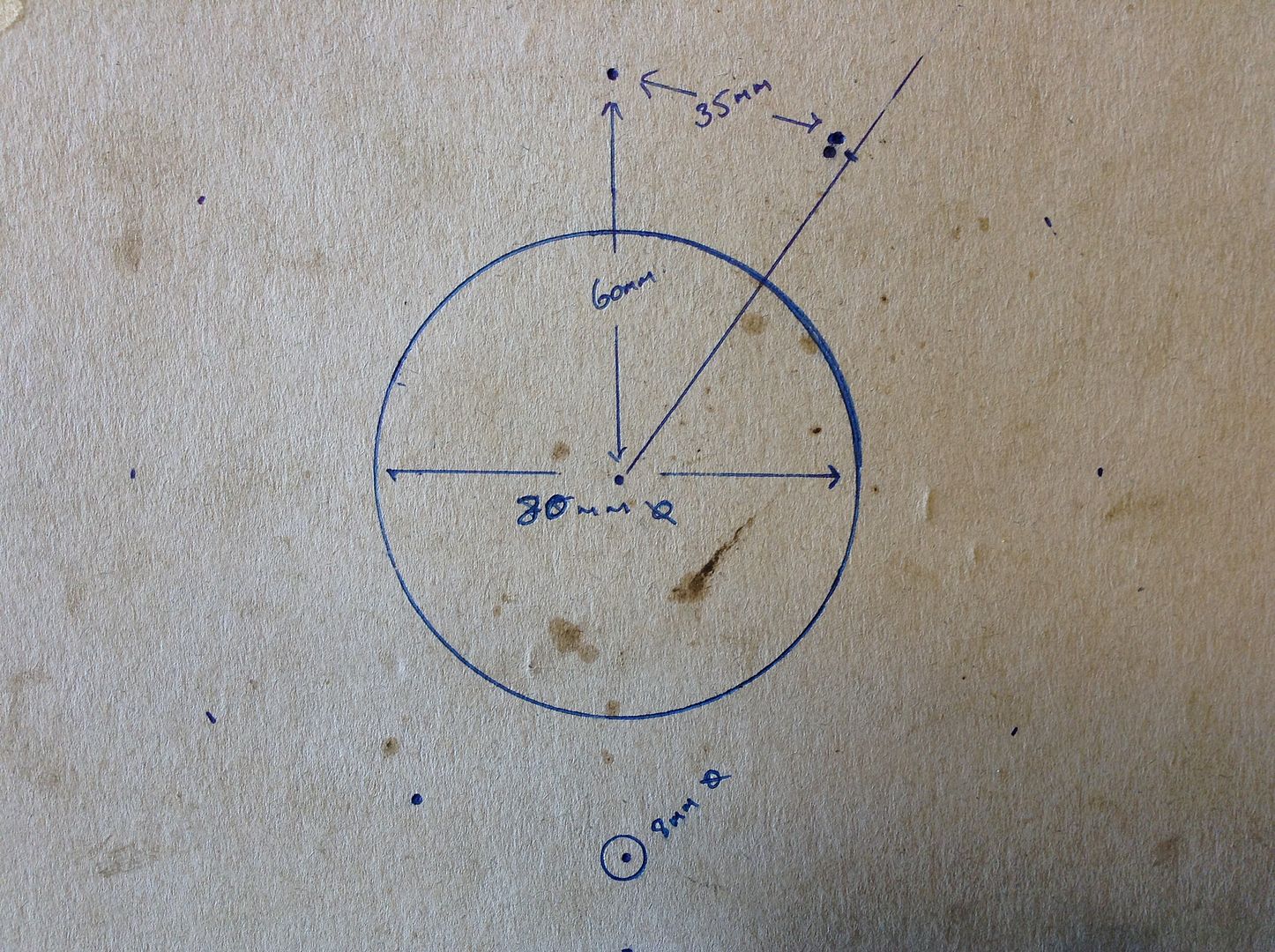

Also took measurements from the spindles for caliper brackets. Need to figure out a cad drawing so I can get them lazer cut out.


Had a good tidy up this afternoon as the place was getting pretty messy.

More this week.
vanmanjimmer
Registered user
Posts: 347
Joined: Wed May 27, 2009 8:20 am

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by Karmann » Tue Apr 07, 2015 9:37 pm
Hi
Can I ask why you couldn't use the CE rear shock mounts? I have a similar shock alignment issue and was going to buy a set myself. Am wondering now if i might be better off trying to 'un-pick' the existing mounts and re-align them?
Thanks
Karmann
Registered user
Posts: 92
Joined: Wed May 02, 2012 12:01 pm

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by vanmanjimmer » Wed Apr 08, 2015 6:59 am
Karmann wrote:Hi
Can I ask why you couldn't use the CE rear shock mounts? I have a similar shock alignment issue and was going to buy a set myself. Am wondering now if i might be better off trying to 'un-pick' the existing mounts and re-align them?
Thanks


Hi Bud,

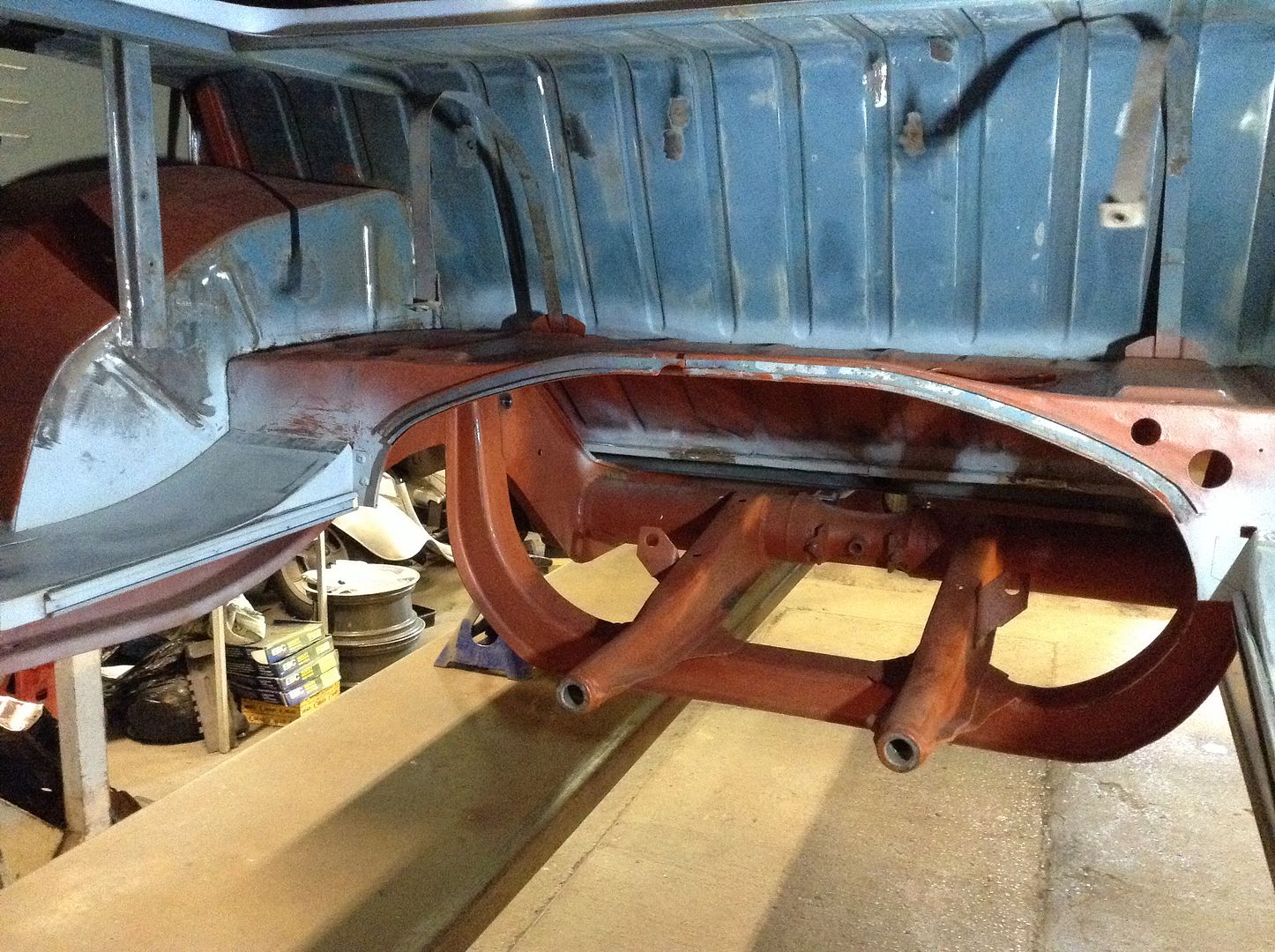

The CE rear mounts didnt work for me because I have narrowed the rear torsion beam. This makes the mounts to deep and causes alignment issues.

If you running standard width you should have no problems either re positioning the stock mount or using the CE ones.

Hope that helps cheers, Jim
vanmanjimmer
Registered user
Posts: 347
Joined: Wed May 27, 2009 8:20 am

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by Karmann » Wed Apr 08, 2015 7:02 pm
Ahh I see.... should work for me then. Thanks Jim.

Great thread by the way :-)
Karmann
Registered user
Posts: 92
Joined: Wed May 02, 2012 12:01 pm

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by vanmanjimmer » Sun Apr 12, 2015 5:46 pm
Evening guys, only managed to get one day on the bus this week.

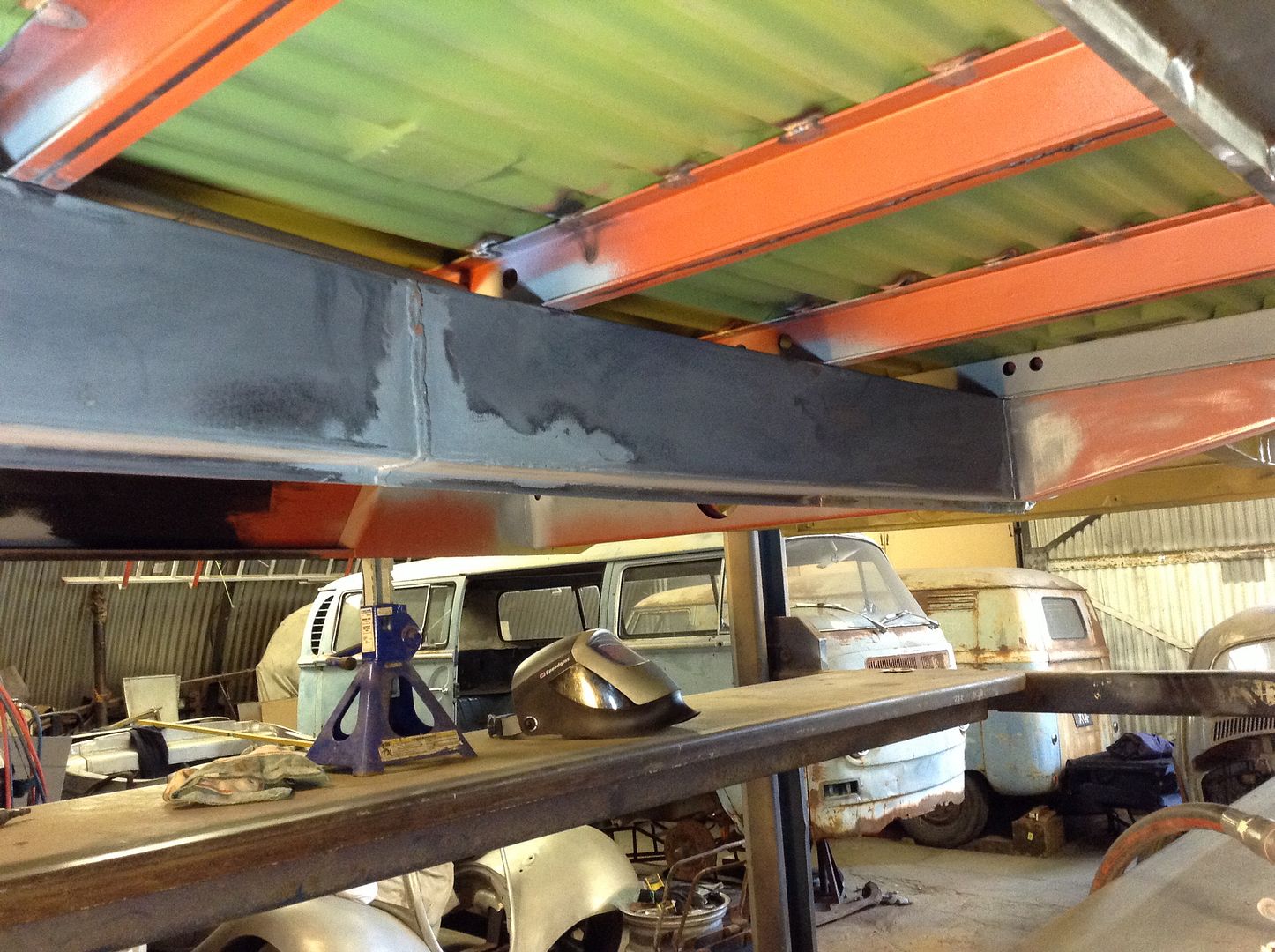

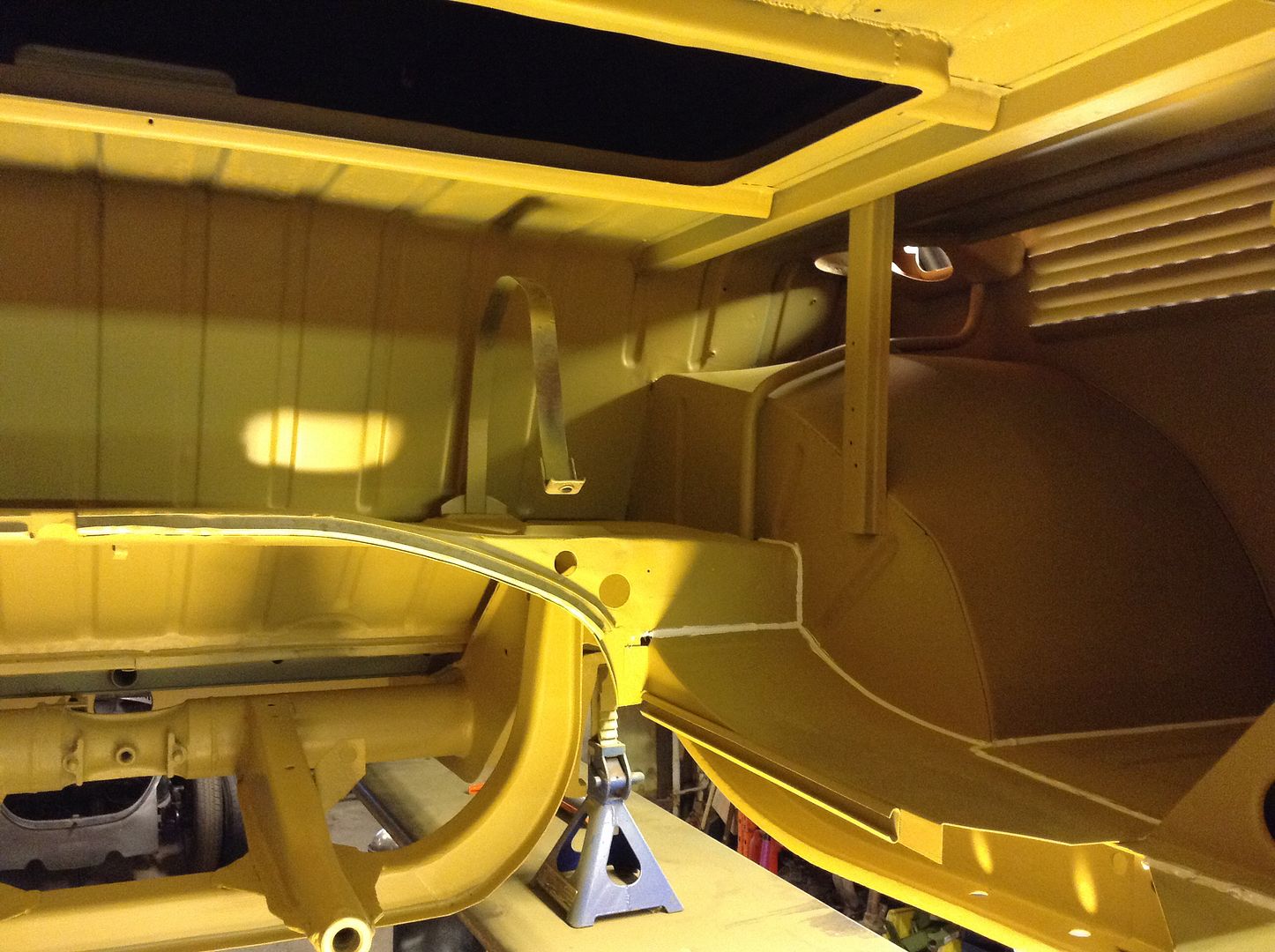

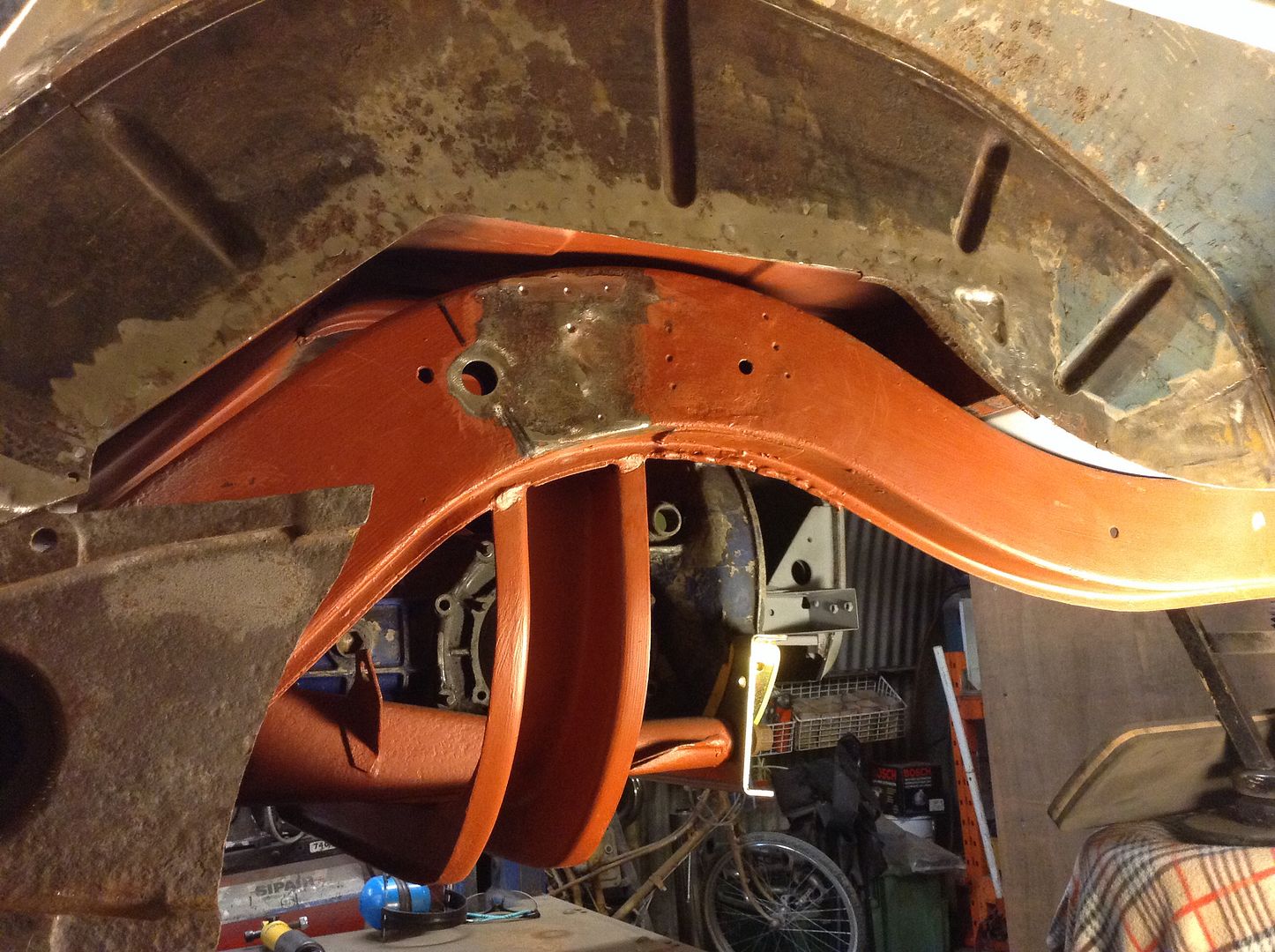

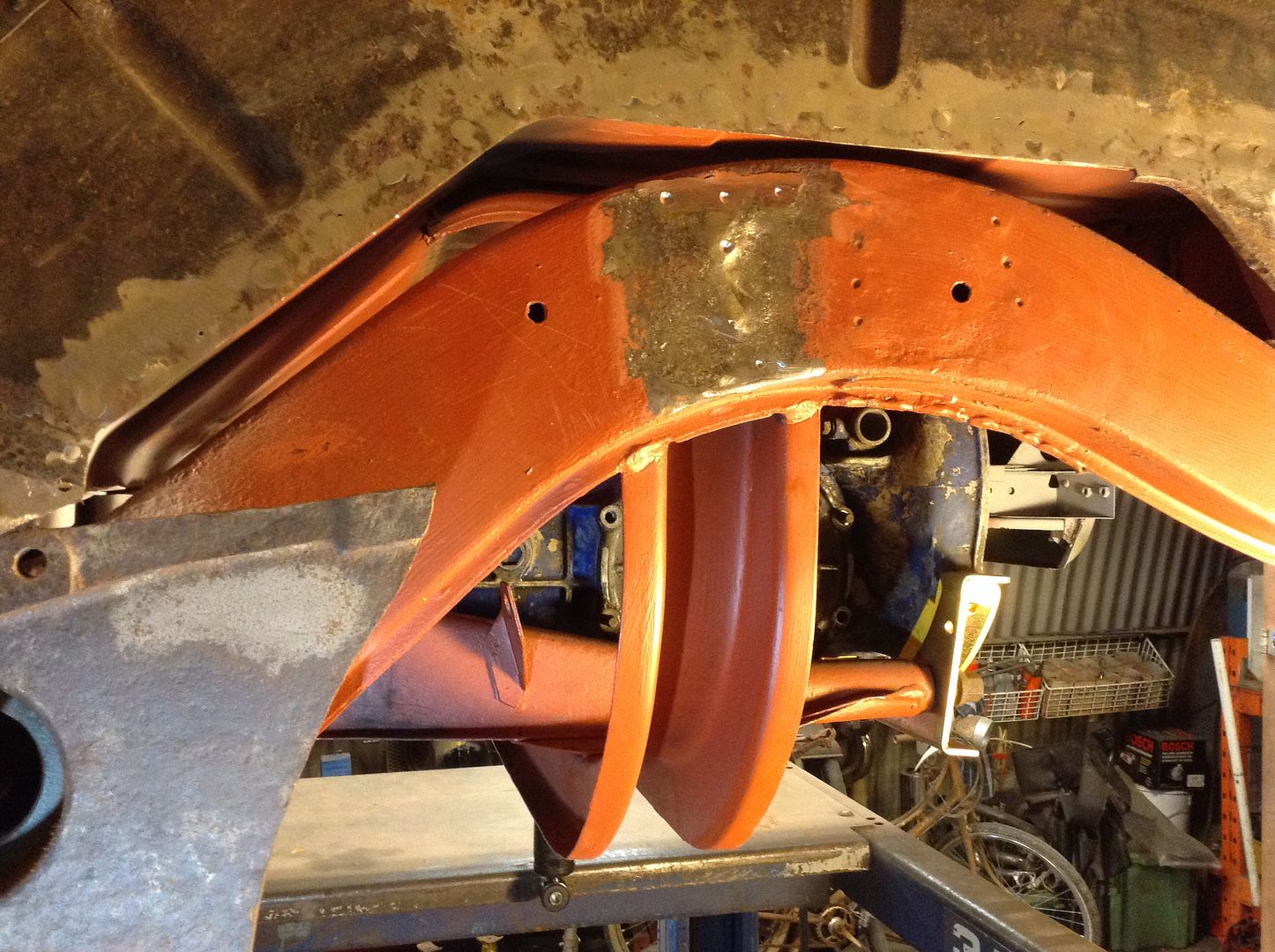

This morning I got the DA fired up and got busy on the chassis and engine bay. You would have thought it would be easy because most of it has been replaced but felt like hard work to me! Started getting a little crazy towards the end.

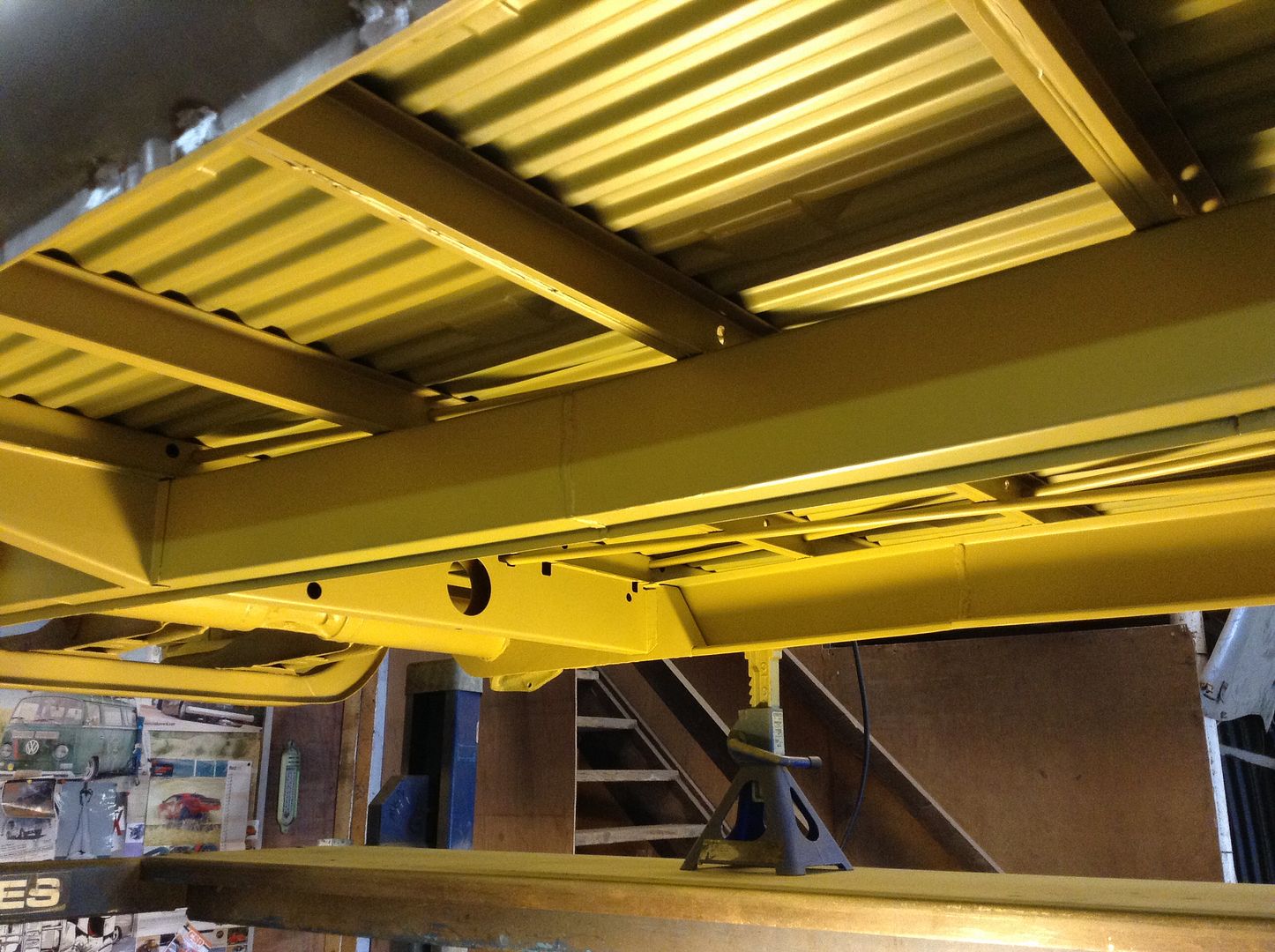

A quick panel wipe followed and then started mixing up the etch primer.






Left that curing for the night, seam sealer this week then! :cheers:
vanmanjimmer
Registered user
Posts: 347
Joined: Wed May 27, 2009 8:20 am

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by Vwstu » Mon Apr 13, 2015 9:05 pm
Looking fab:-)
Vwstu
Registered user
Posts: 165
Joined: Wed Jan 30, 2013 9:32 pm

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by vanmanjimmer » Mon Apr 13, 2015 9:26 pm

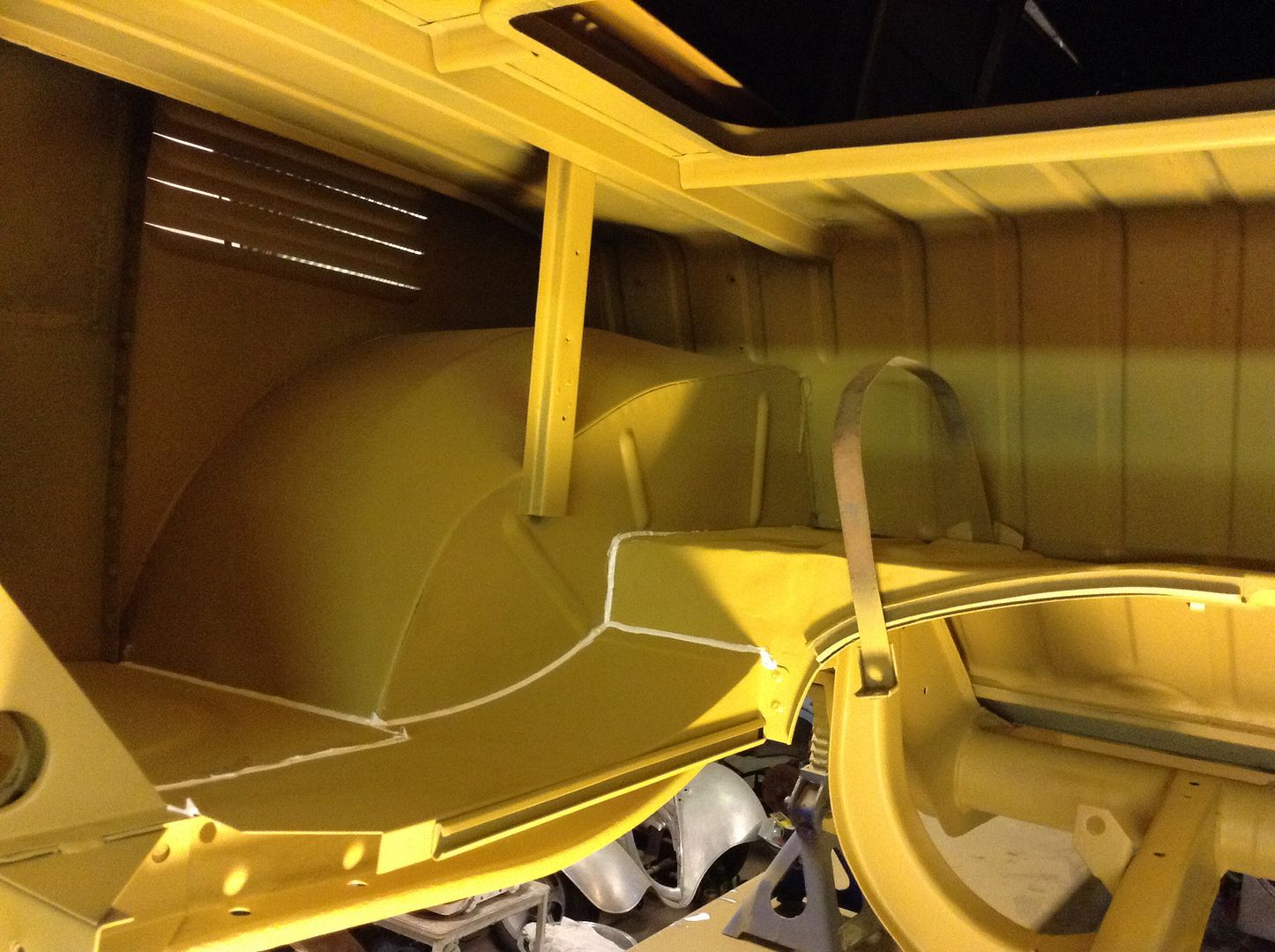

Had some areas to blow in with etch that were thin so did that tonight, it dried super quick beacuse it was so warm this evening. So I made a start in the seam sealer.

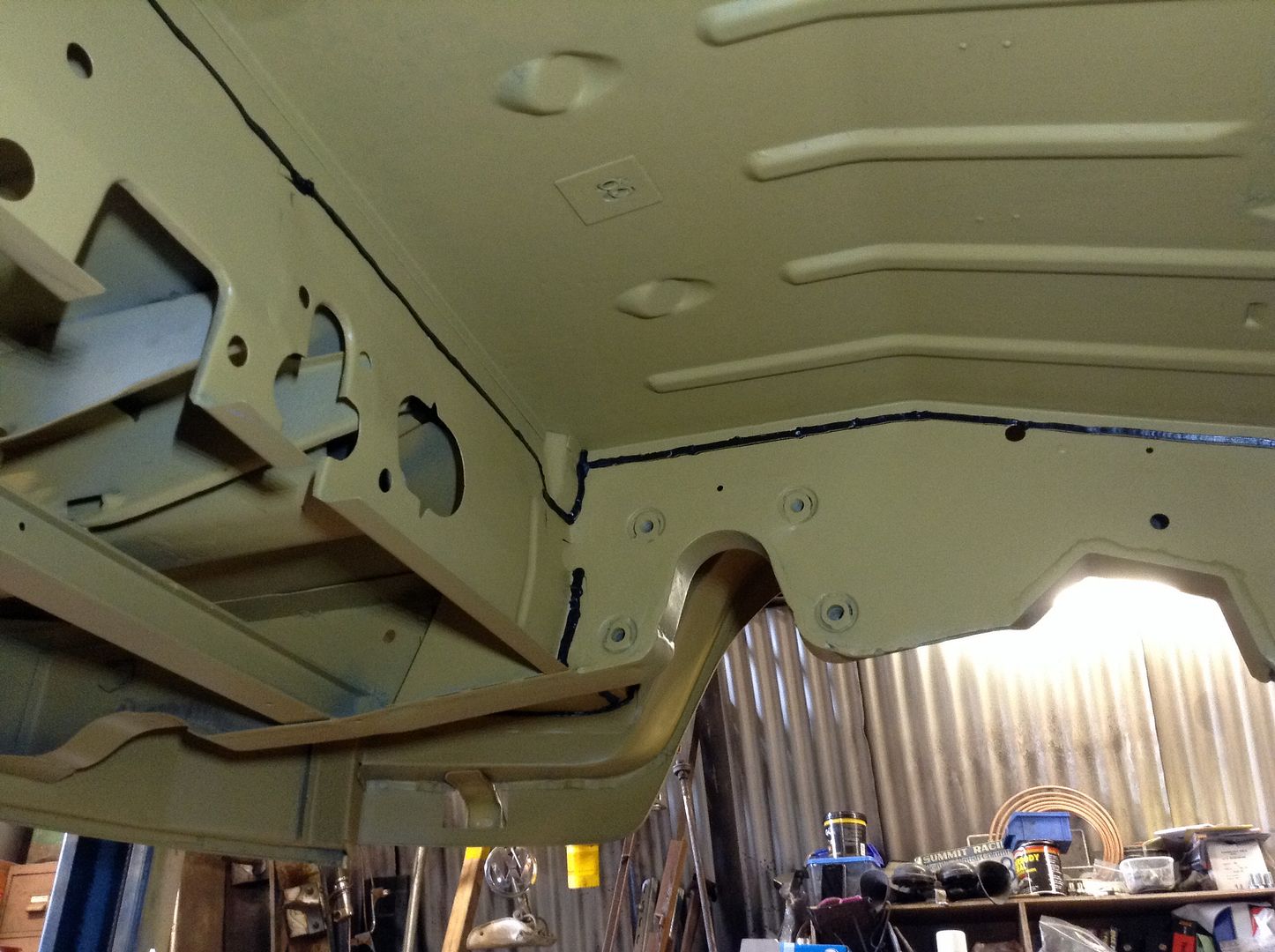

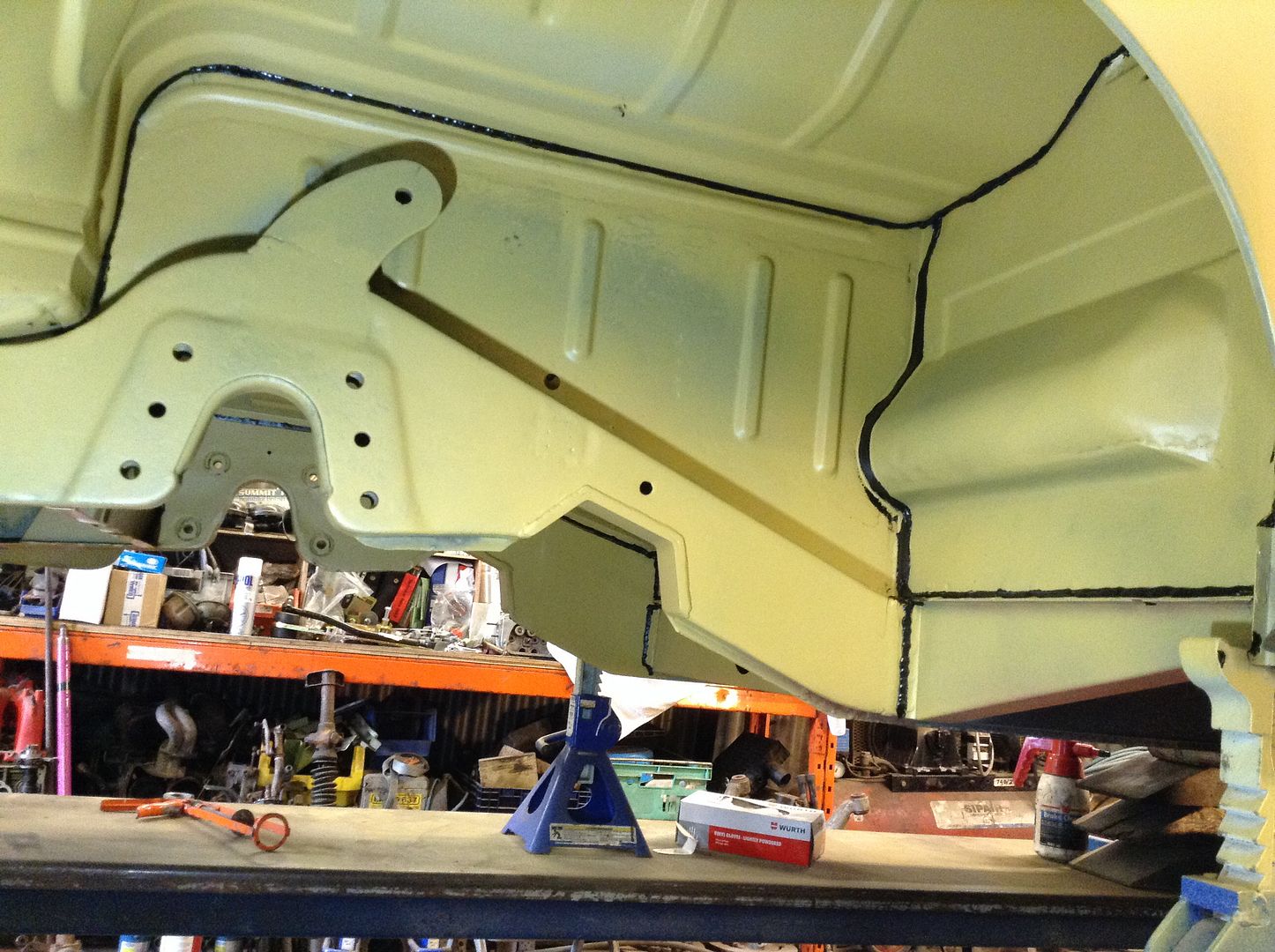

One tube down! 5 + a can of brush on to go!
vanmanjimmer
Registered user
Posts: 347
Joined: Wed May 27, 2009 8:20 am

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by wejjy » Mon Apr 13, 2015 10:13 pm
Looks awesome mate, bet you are proper happy!
wejjy
Registered user
Posts: 1190
Joined: Sun Jun 05, 2005 8:40 am

Re: 1964 Slammed/Narrowed Swedish Panel Resto

by vanmanjimmer » Tue Apr 14, 2015 8:35 pm
wejjy wrote:Looks awesome mate, bet you are proper happy!


Cheers bud yeah really pleased, every day feels like we're getting some where now.

Got some more sealer in tonight.



Abit more to go then i can give it all another couple of primer coats.
vanmanjimmer
Registered user
Posts: 347
Joined: Wed May 27, 2009 8:20 am
